Assembly

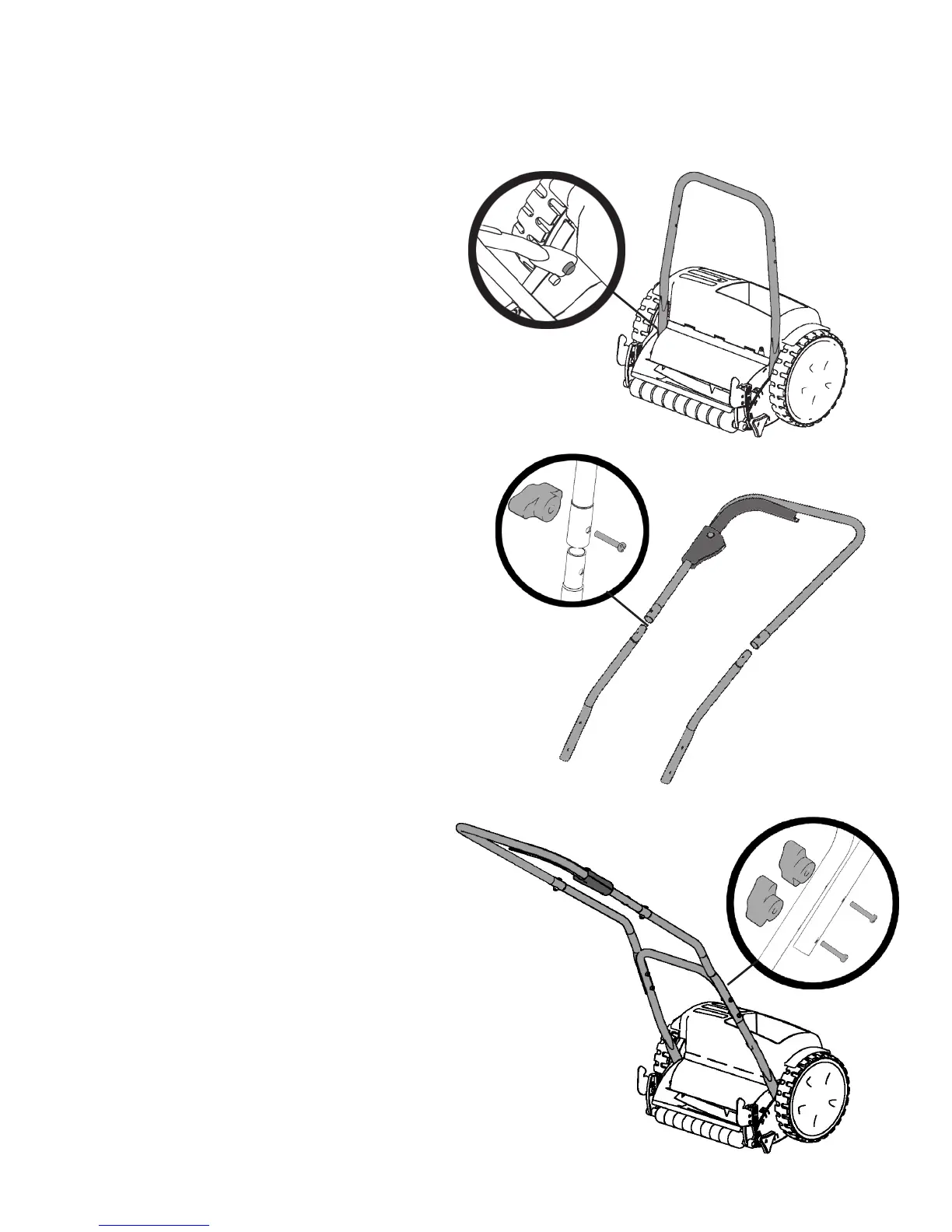

Fit the lower handle frame to the main
unit.
Fit the lower frame between the two
smaller lugs on the main unit.
Fit one side and then ex the other side
into position over the opposite lug.
The lower handle should rest on the 2
larger lugs.
Assemble the upper handle frame to the
middle handle frame parts.
Ensure the upper frame is facing upwards
(safety button up)
The middle frame parts should bend down.
The bottom section of the middle frame
should have the hollow side facing inwards
to locate onto the lower handle frame tube.
Use two nuts and bolts to secure together.
If incorrectly assembled, disconnect and
re-assemble in the correct orientation.
Locate and assemble the upper handle
frame and middle handle frame assembly
to the lower handle frame.
Use four nuts and bolts to secure in place .
CAUTION : remove the isolator key and battery before assembling the
mower.
