Gtech HT3.0 - Assembly and Operation Details; Assembly

7

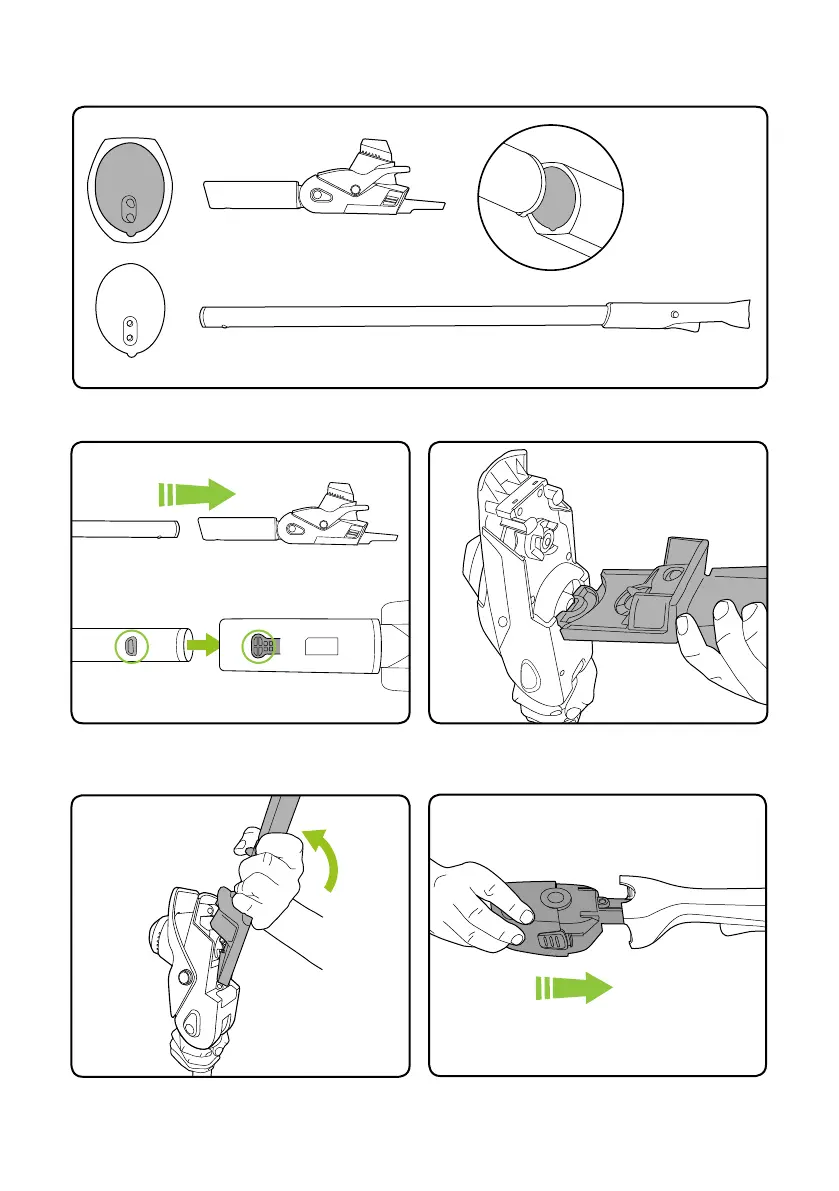

Fit the head to the main body.
Assembly
It will locks (click) securely into place.
When the pole is fully inserted, the button (1)
will pop up into the aperture (2). To remove,
press the button (1) and pull the pole.
With the blade cover still on, connect the
hedge trimmer blade to the head.
Insert the battery - it will click once fully inserted.
When inserting the body into the hedge trimmer head, ensure the body is the right way up.
The shapes need to match or the handle will not fit.
Hedge trimmer head
Hedge trimmer main body
The shapes
need to match
or the handle
will not fit.
1
2
View underneath
