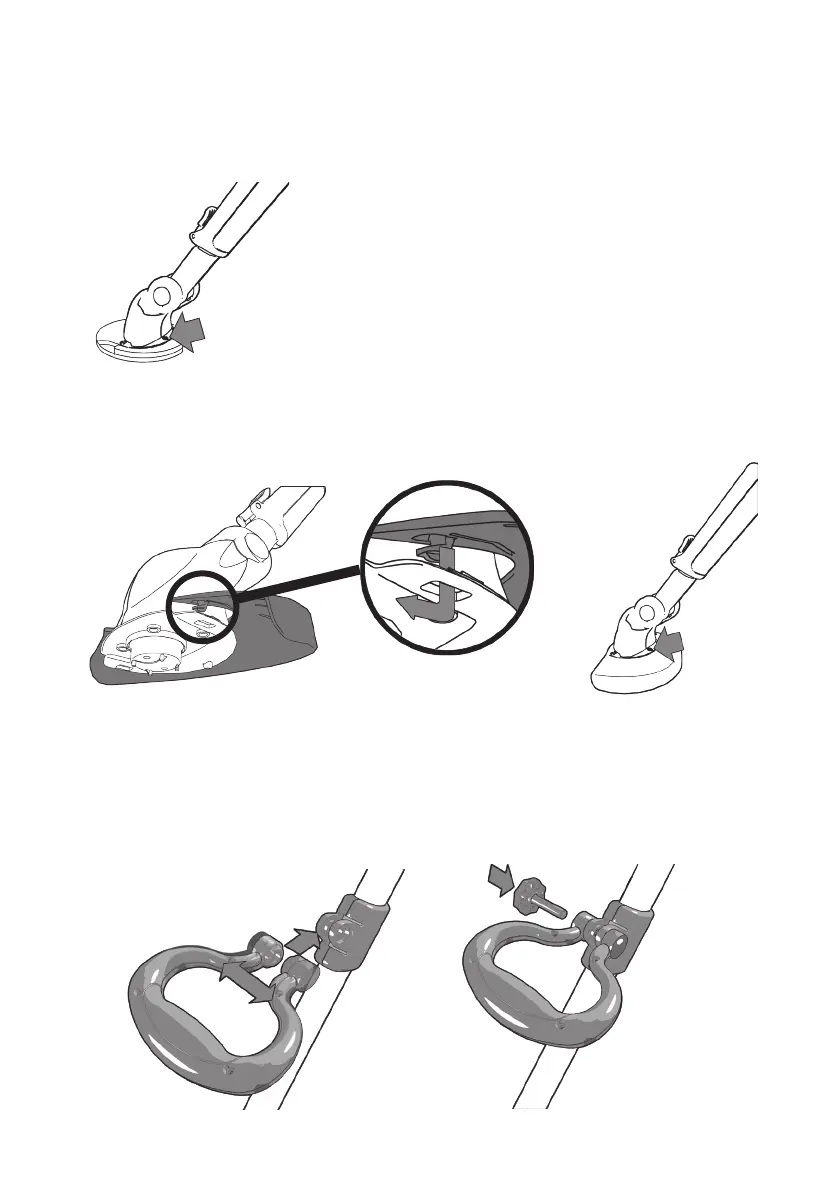

Fitting the trimmer guard onto the base of the head:
Remove the guard xing screw from the housing and retain the screw.
Assembly
Locate the guard onto the head of the trimmer ensuring that the two location
hooks engage into the slots on the trimmer head.
Push the guard forward until the hooks are fully engaged in the slots.
Fit the guard xing screw to secure the guard to the trimmer head.
Fitting the assist handle:
Pull the arms of the assist handle slightly open so that they will t over the con-
necting part on the main tube.
Insert the adjustment knob through the assist handle joint.
Tighten the adjustment knob with the handle in the desired position.
x screw
here
Helpline : 0870 7944001
