2.00 Description of Functions

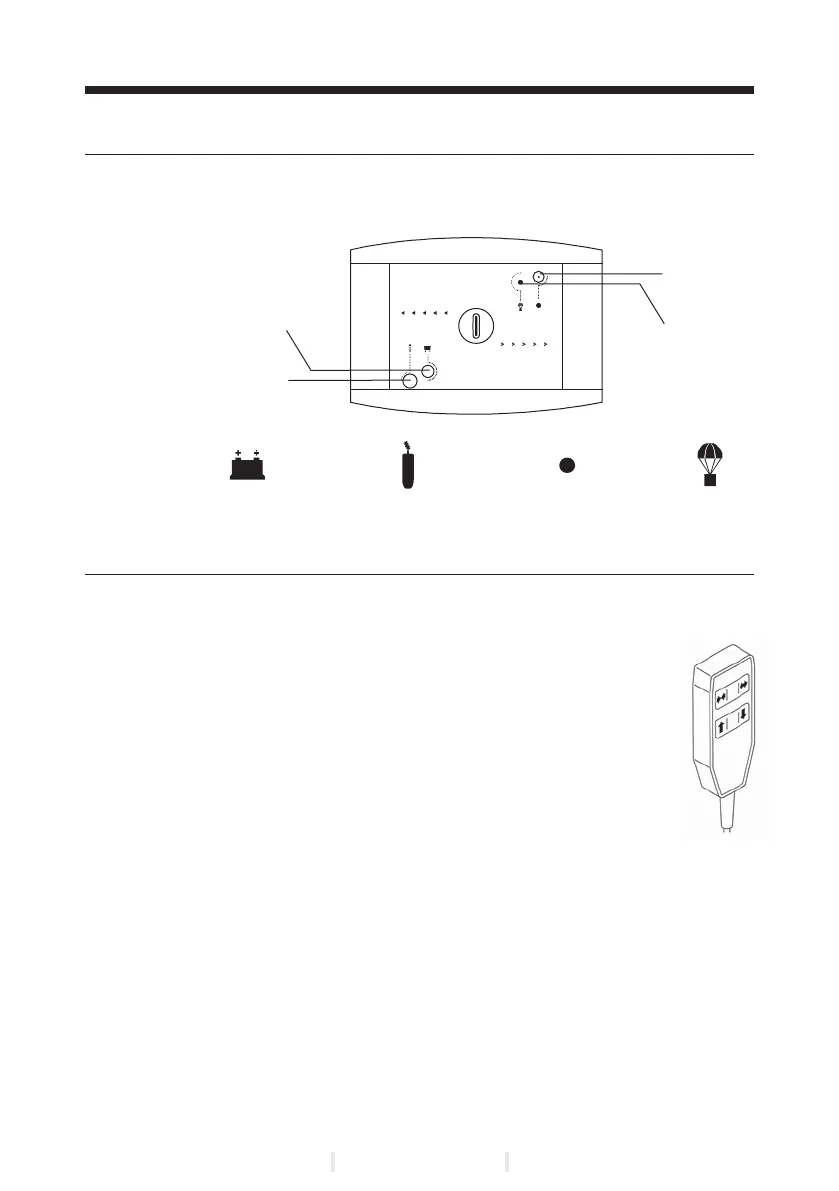

2.01 Pictograms / labels
Pictograms printed on bottom of the DH 2000
1. Charging 2.Hand- 3.Emergency 4.Emergency
indicator control stop lowering.
2.02 Operating the hoist
Hand switch and indicator lamp
DH 2000 switches on automatically when pressing one of the keys
of the hand control.
The lamp turns green when the hoist is switched on.
The hoist switches off automatically approx. 1 minute after use.
DH 2000 will only function when the lifting hanger is mounted on
the lifting strap.
Lifting and lowering is activated by pressing and of the hand con-
trol.
Transport / Transferring along the rail system
Transferring and transport of the DH 2000 along the rail is carried out manu-
ally by the carer
The transverse drive motor
DH 2000 can be provided with a transverse drive motor, which can be build
into the hoist
The transverse drive motor is activated by pressing or of the hand control.
DH 2000 with transverse drive motor can also be transported manually along
the rail system, when the hoist is switched on and are not activated.
