Liftinghanger
The lifting hanger can be mounted on the mobile lifter without the use of any
tools.

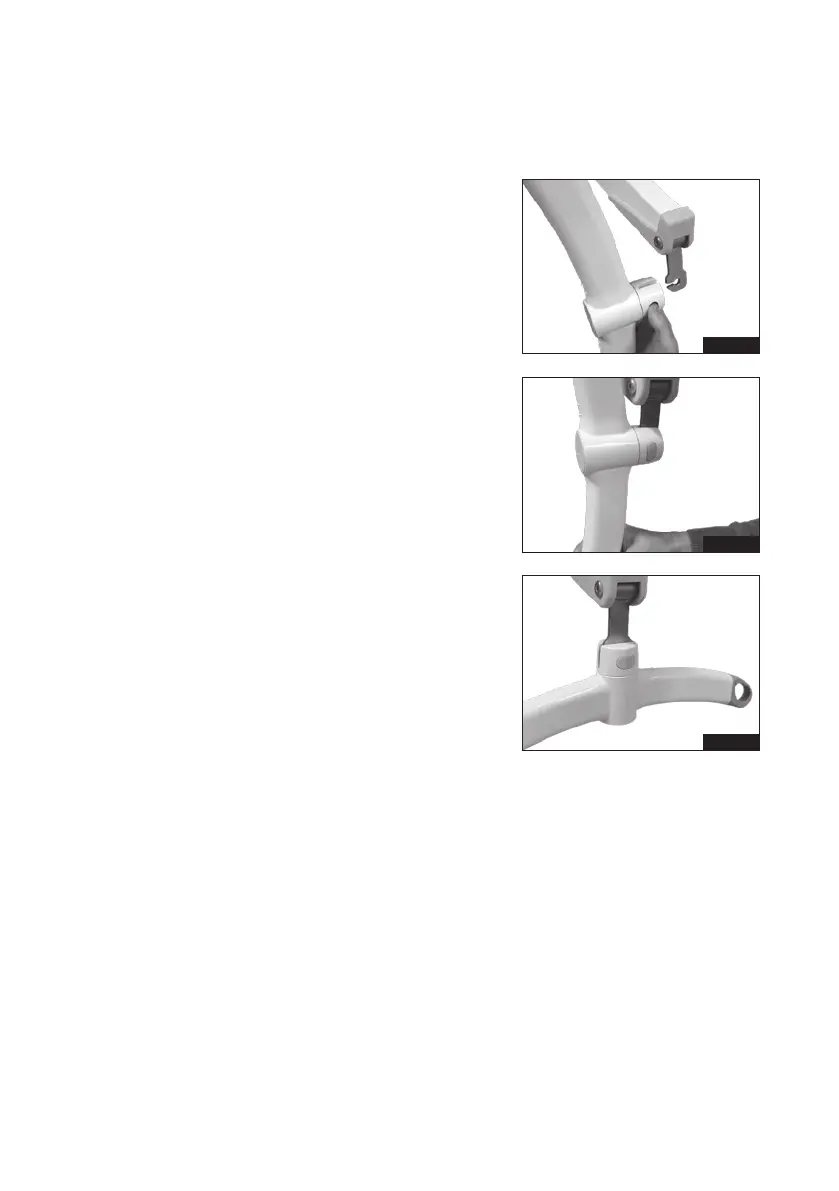

1. Hold the lifting hanger in the right hand
and press the yellow button using the
thumb as shown. The slot on the lifting
hanger’s top cover must face up. (g. 1).
2. Insert the lifting hanger in the slot on the
side of the lifting hanger’s top cover.
(g. 2).
3. Check that the yellow button has returned
to its locked position by checking that it is
ush with the cover of the lifting hanger
and that the strap attachment can rotate
freely. (g. 3).
Fig1
Fig3
Fig2
