105 Assemblinglifterbeforeuse

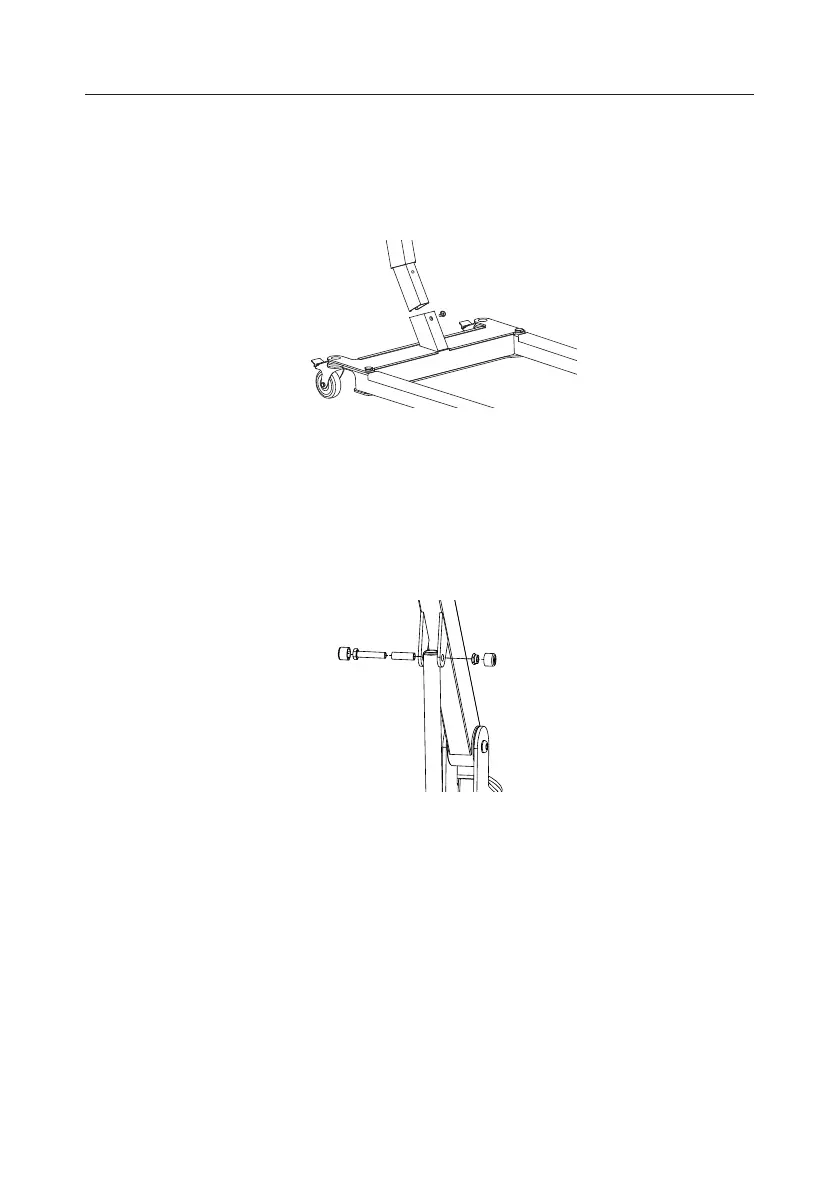

Assemblingmast/chassis–electrical
Loosen screw tted to mast. Position mast in base. When mast is in as far as
it will go, tighten screw using an M5 Allen key. To dismantle, remove screw to
pull mast out of base. Retighten screw in mast.
Mountingofconnectorsformotorsandhandcontrol
Fit connectors for width adjustment motor and hand control in the mast.
Fittingactuator
Fasten the actuator using the attached bushing and screw with nut.
Tighten screw and nut and put on the nut protector.
Batteries
The batteries supplied with the lifter are not fully charged on delivery. Before
use, therefore, the lifter must be charged up. A full charge, which takes about
8 hours, is recommended.
