GUSTARD U18 - Front Panel Overview; Display Functionality; Reference Clock Control; IIS Output Mode Settings

-
2
-

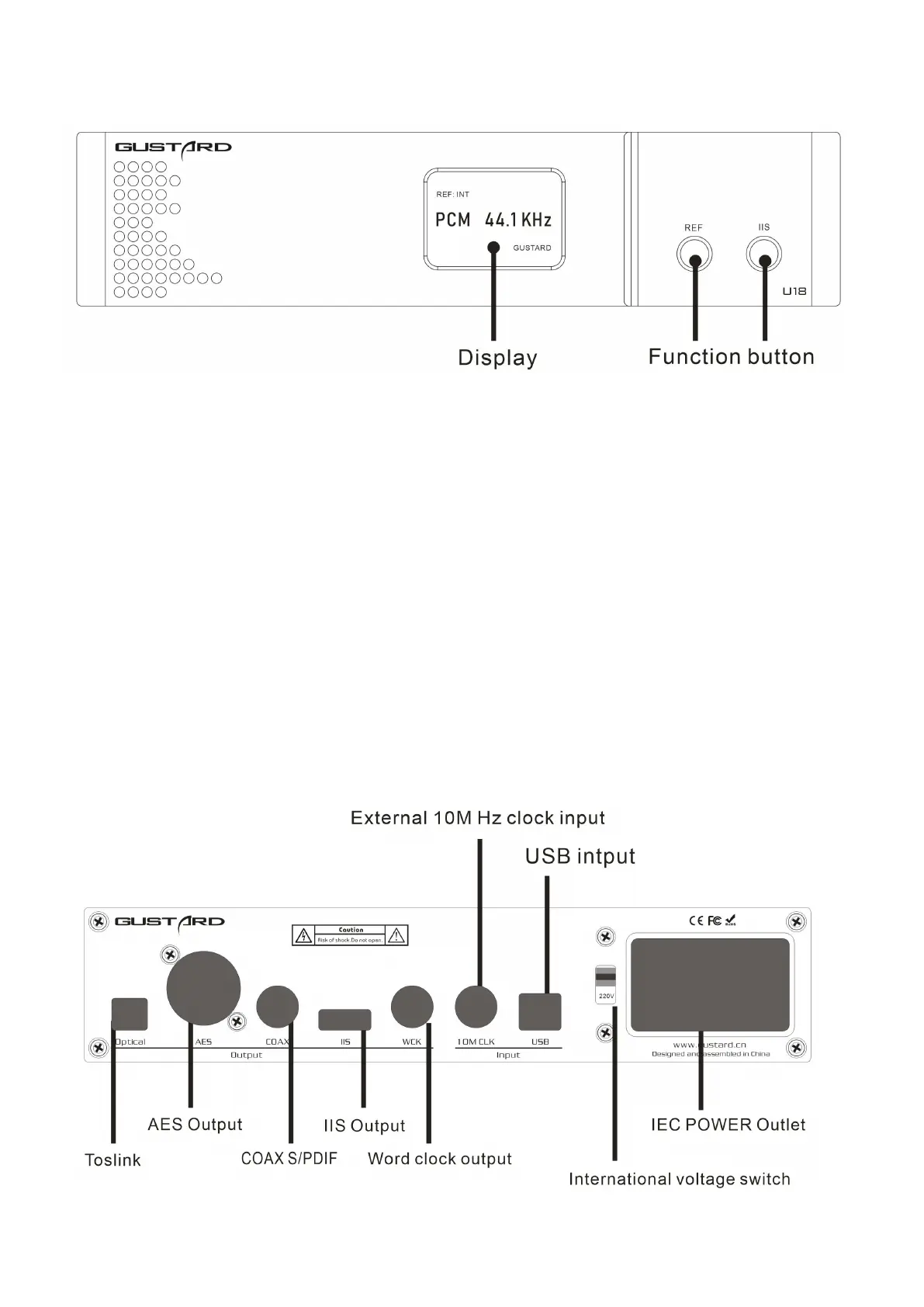

Front Panel
1. The screen is to display the sampling frequency, clock source and the output of BNC.
2. REF—Clock source. Press to switch between internal clock and external 10MHz clock.
3. IIS—Modes of IIS output. Short press to change the pinout and long press to change
the DSD Flag.
Back Panel
