Load of all cooking areas max. 8.3 kW
Load of the oven max. 3.9 kW
Gas Cooktops
Load of one cooking area max. 3.9 kW
Load of all cooking areas max. 11.3 kW
Subject to technical changes!
Installation Instructions

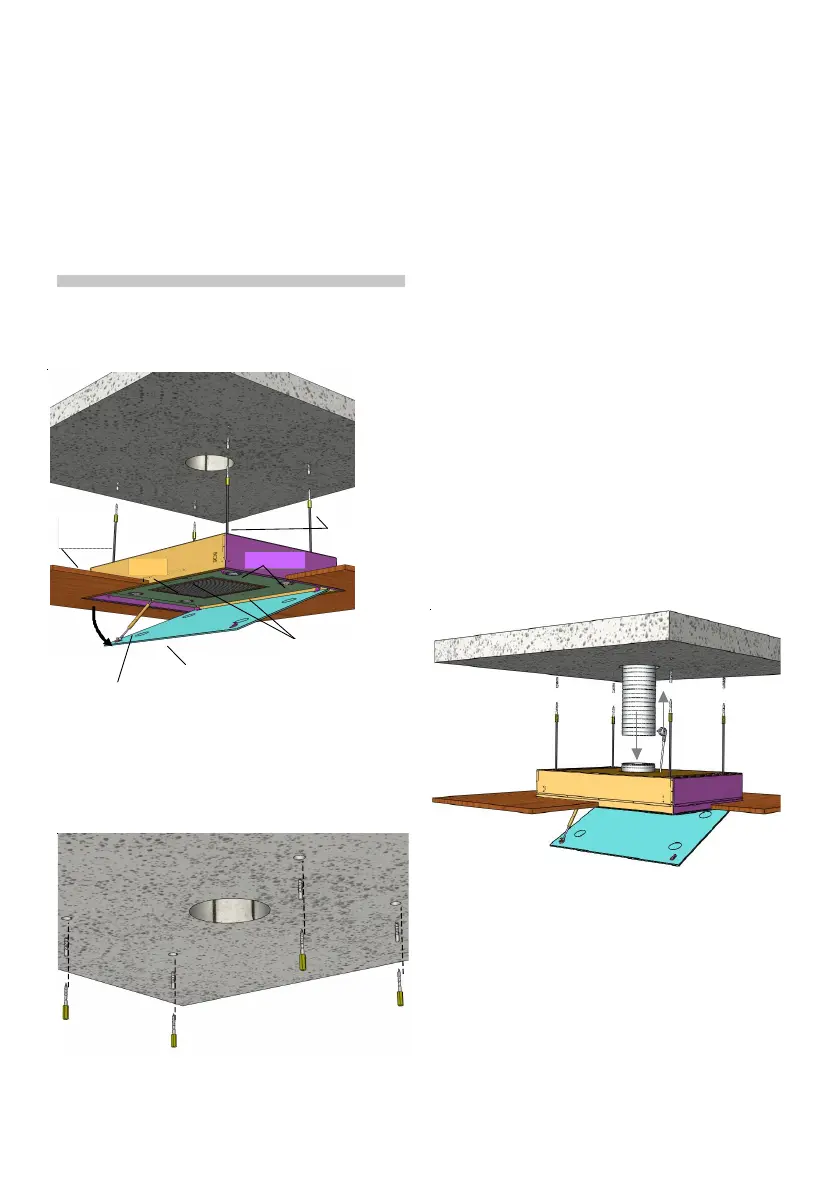

Connection Above
1. Prepare an appropriate exhaust airflow in
the ceiling.
2. Drill positions for the fastener holes in the
ceiling on the basis of the suspension points
provided on the hood body using a suitable
drill. Missing dimensions are dependent on
the model and must be measured directly
from the hood. Note the minimum distance
between cooking areas and the underside of
the exhaust hood. (Holes Ø10mm for the
attachment of the exhaust hood) Please
position the exhaust hood in the center of the
cooking area.
3. Drill the holes and insert suitable screw
anchors flush.
4. Screw machine screws into the screw
anchors (Ø10 mm) until they protrude by
about 20 mm. Screw thread guides onto the
machine screws and screw the threaded
pipes onto the machine screws.
5. Hang the exhaust hood on the threaded
pipes and loosely fasten it using the washers
and nuts.
6. Align the exhaust hood (inspect the
installation) and tighten the nuts.
en
7. Cut the exhaust hose to the proper length.
Attach and tighten the exhaust hose, be sure
that it is free of bends.
8. Create the electrical connection. Connect
an extension cable if an external blower motor
is to be used.
