GDS-2000A Series User Manual
192
When using the optional Logic Analyzer, labels can
also be set for the digital channels. Please see the
GDS-2000A Options User Manual for details. The
labels for digital channels cannot be edited from the
Save/Recall menu.

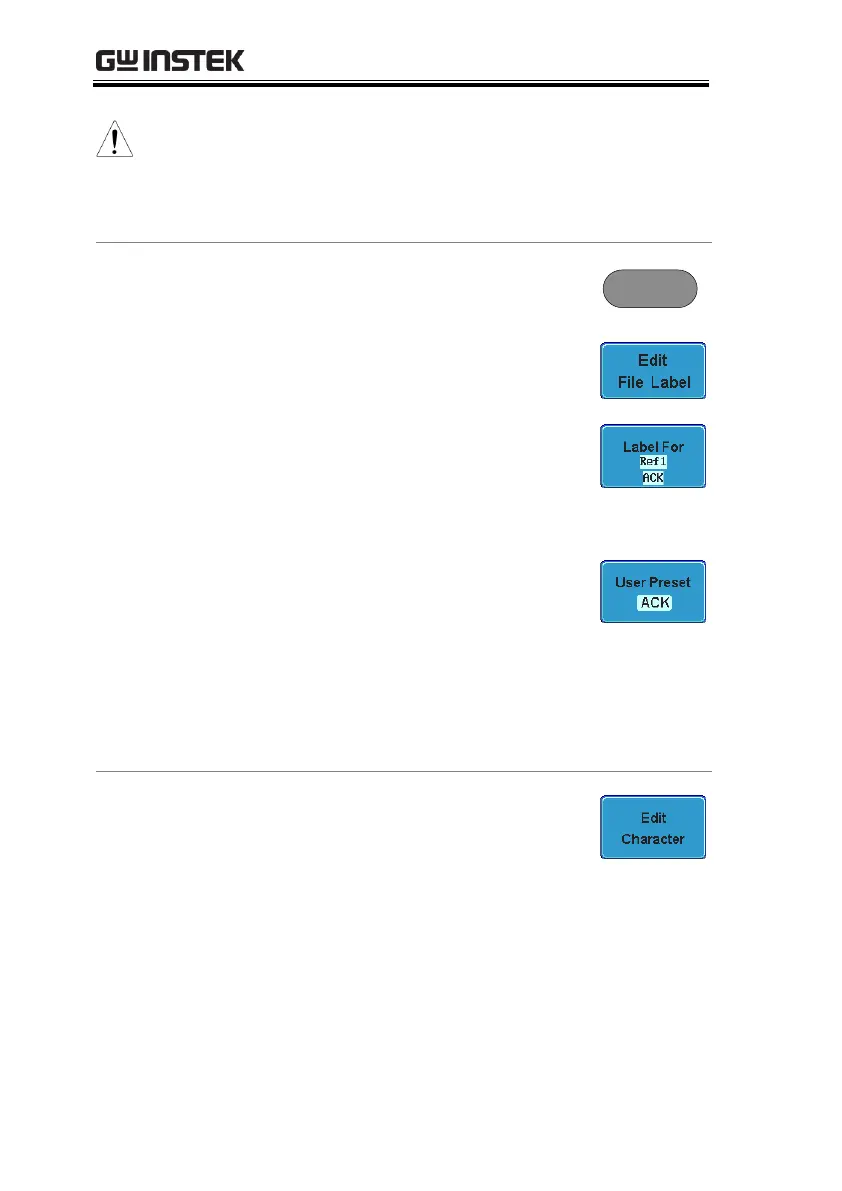

1. Press the Save/Recall key from the
front panel.
2. Press Edit File Label from the
bottom menu.
3. Press Label For and select the item
that you want to create the label
for.
4. To choose a preset label, Press User
Preset from the side menu and
choose a label.
ACK, AD0, ANALOG, BIT, CAS,
CLK, CLOCK, CLR, COUNT,
DATA, DTACK, ENABLE, HALT,
INT, IN, IRQ, LATCH, LOAD,
NMI
1. Press Edit Character to edit the
current label.
