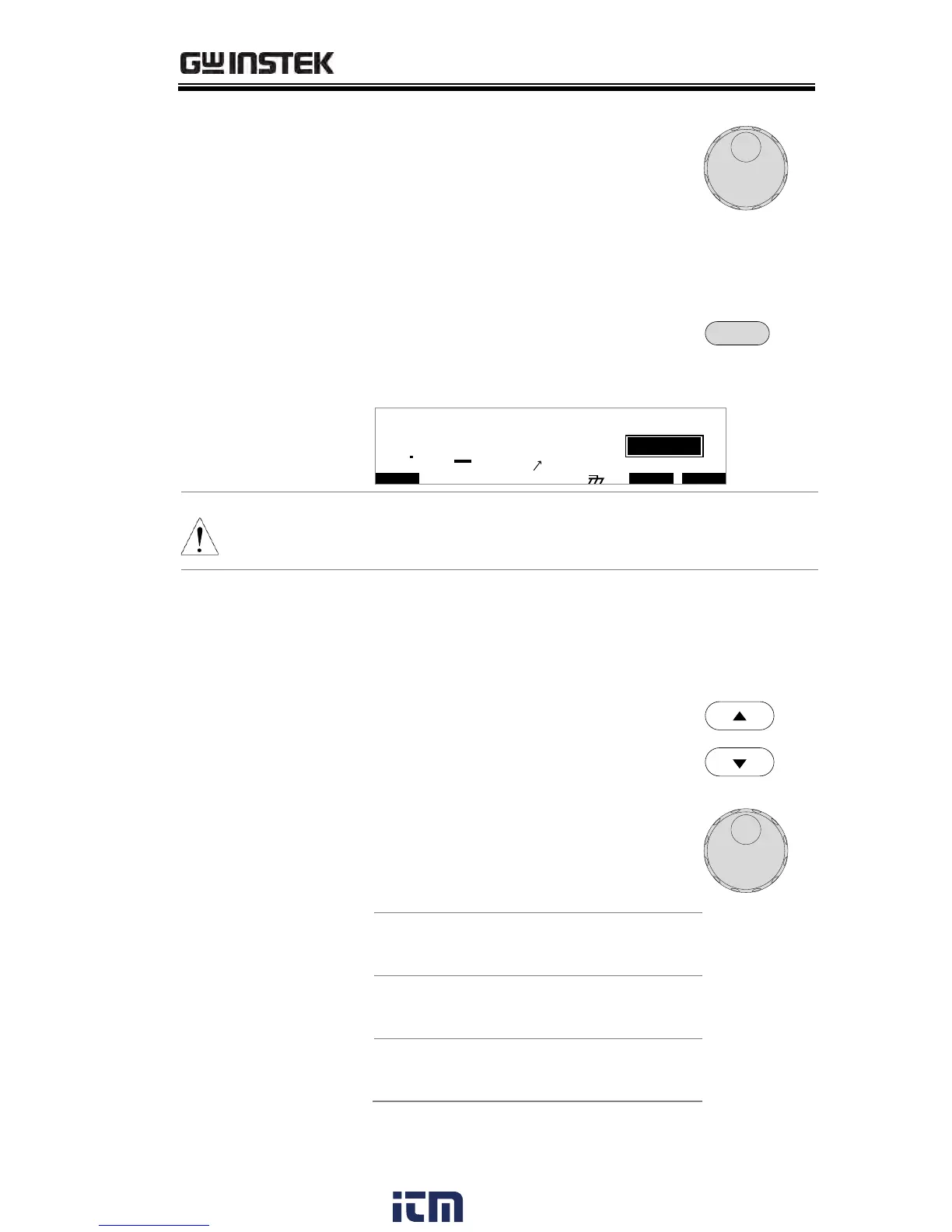

OPERATION
53
3. Use the scroll wheel to set the ARC
mode.
ARC MODES:
OFF, ON AND CONTINUE,
ON AND STOP
4. Press the EDIT/SAVE key to save
and exit the MANU Utility and go
back to EDIT status.
EDIT/SAVE
I R G B
m A
A CW D CW I / LH O I M ET R
E
F R E Q = 0 H z 6
0 100
k V
0 0 m ARA C = 1 .0
IDE
MT I E = 0 0 1 . 0 SR
0 0 m AER F =# 0 .0MM A UN N A_
1 . 0 0 m AIH ES = 0T
0 0 . 1 S0A M P =R
T
2M A N U = * * * - 0 0
Note
The ESC key can be pressed at any time in the
Utility menu to cancel and exit.
5. If the ARC MODE was set to either ON AND
CONTINUE, or ON AND STOP, the ARC
current level can be edited.
6. Use the UP/DOWN arrow keys to
move the cursor to the ARC setting.
7. Use the scroll wheel to edit the
ARC level.
GPT-98XX:
ACW
DCW
1.000mA~080.0mA
1.000mA~020.0mA
GPT-99XX/99XXA:
ACW
DCW
2.000mA~200.0mA
2.000mA~040.0mA
