GW Instek GPT-9801 User Manual

GPT-9000/9000A Series User Manual
92

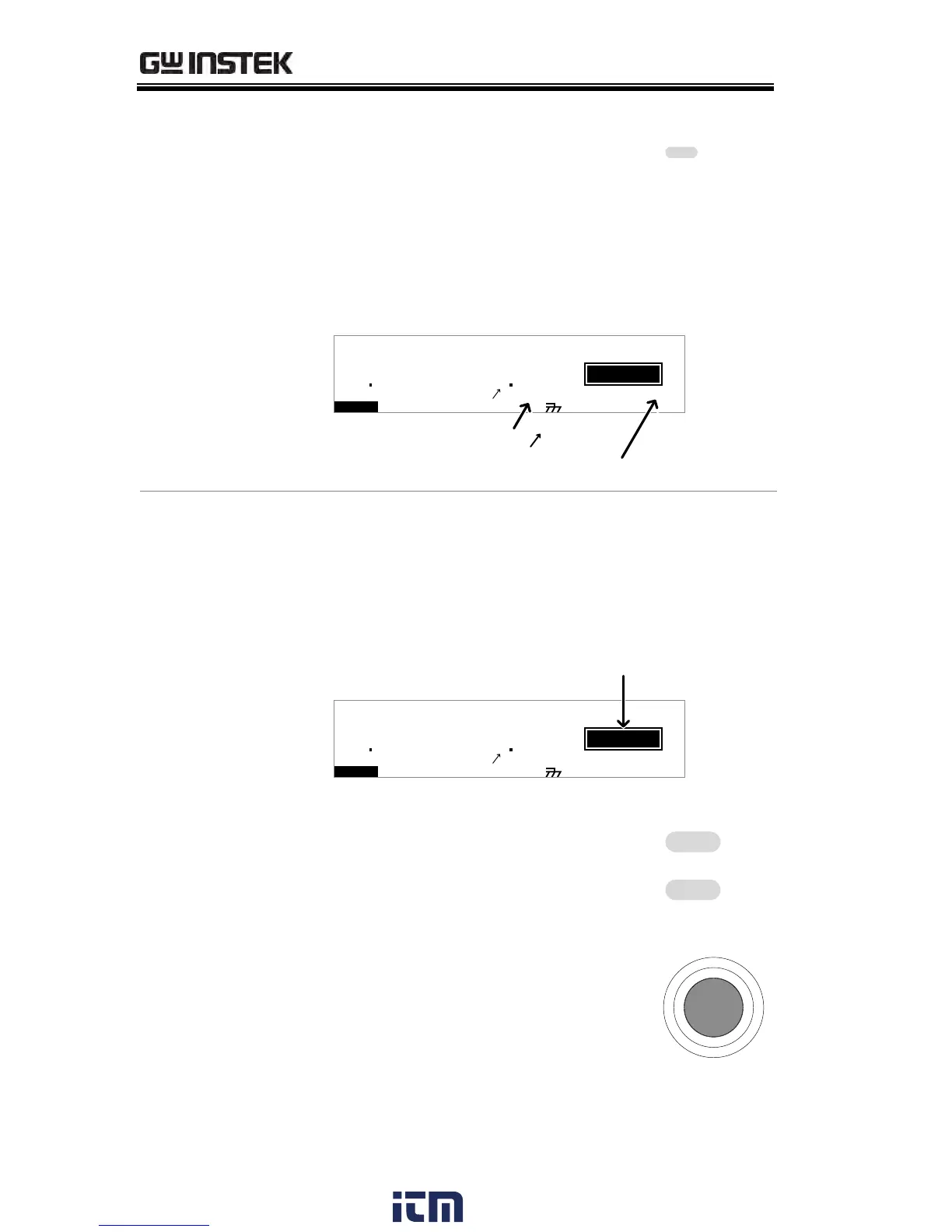

5. The TEST indicator will be lit
orange when in the TEST status.
TEST
6. Each test will start by showing the remaining
ramp up time, followed by the remaining test
time. Each test will be tested in sequence until
the last test has finished or the test is stopped.
I R G B A C W D CW
F R E Q = 0 H z 6
0 100
k V
SET
MT I E = 0 0 3 . 2 SR
0 0 m AER F =# 0 .0
1 . 0 0 m AIH ES = 0T
0 0 . 1 S0A M P =R
T
remaining TIMER time
00 37
m A
remaining RAMP time
E MA U OT N A_ 1A U T O = 0 0 1 - 0 0
PASS/FAIL HOLD
1. If Pass Hold is set to ON or Fail Mode is set to
HOLD for a manual test, then the tester will
“hold” the testing after a Pass/Fail result for
that particular test. See page 54, 56 for details.
I R G B A CW D CW
F R E Q = 0 H z 6
0 100
k V
LOH
MT I E = 0 0 3 . 2 SR
0 0 m AER F =# 0 .0
1 . 0 0 m AIH ES = 0T
0 0 . 1 S0A M P =R
D
00 37
m A
E MA U OT N A_ 1A U T O = 0 0 1 - 0 0
HOLD status
2. The PASS or FAIL indicator will
also be lit. The buzzer will NOT
sound.
PASS
FAIL
3. To continue to the next test after
HOLD is displayed on-screen,
press the START button.
START
