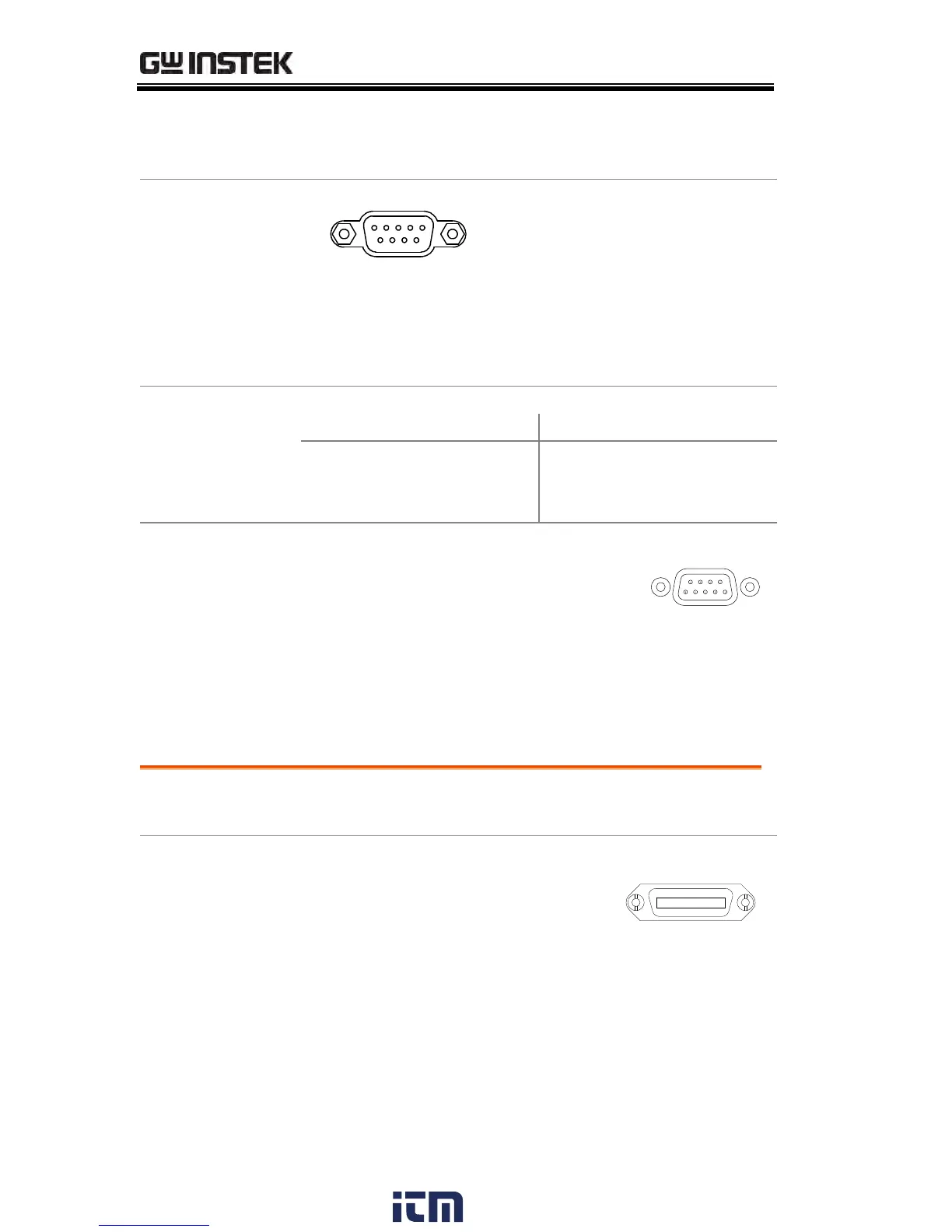

GPT-9000/9000A Series User Manual
114
Stop bit
1
Flow control
None
Pin Assignment
1 2 3 4 5
6 7 8 9
1: No connection
2: RxD (Receive Data)
3: TxD (Transmit Data)
4: No connection
5: GND
6-9: No connection
Connection
PC
Tester
DB9 Pin
Signal
Signal
DB9Pin
2
RxD
TxD
3
3
TxD
RxD
2
5
GND
GND
5
Panel operation
1. Connect the Null modem cable to
the rear panel RS232 port.
RS232
2. Set the interface to RS232 from the
Common Utility menu.
Page 100
GPIB Remote Interface
GPIB
Configuration
Address
0-30
Panel operation
1. Connect the GPIB cable to the
rear panel GPIB port.
GPIB
2. Set the interface to GPIB and set
the GPIB address from the
Common Utility menu.
Page 100
