GW Instek GPT-9904 User Manual

APPENDIX
165
2
2
0
1
0
0
120
230
2
2
0
1
0
0
120
230

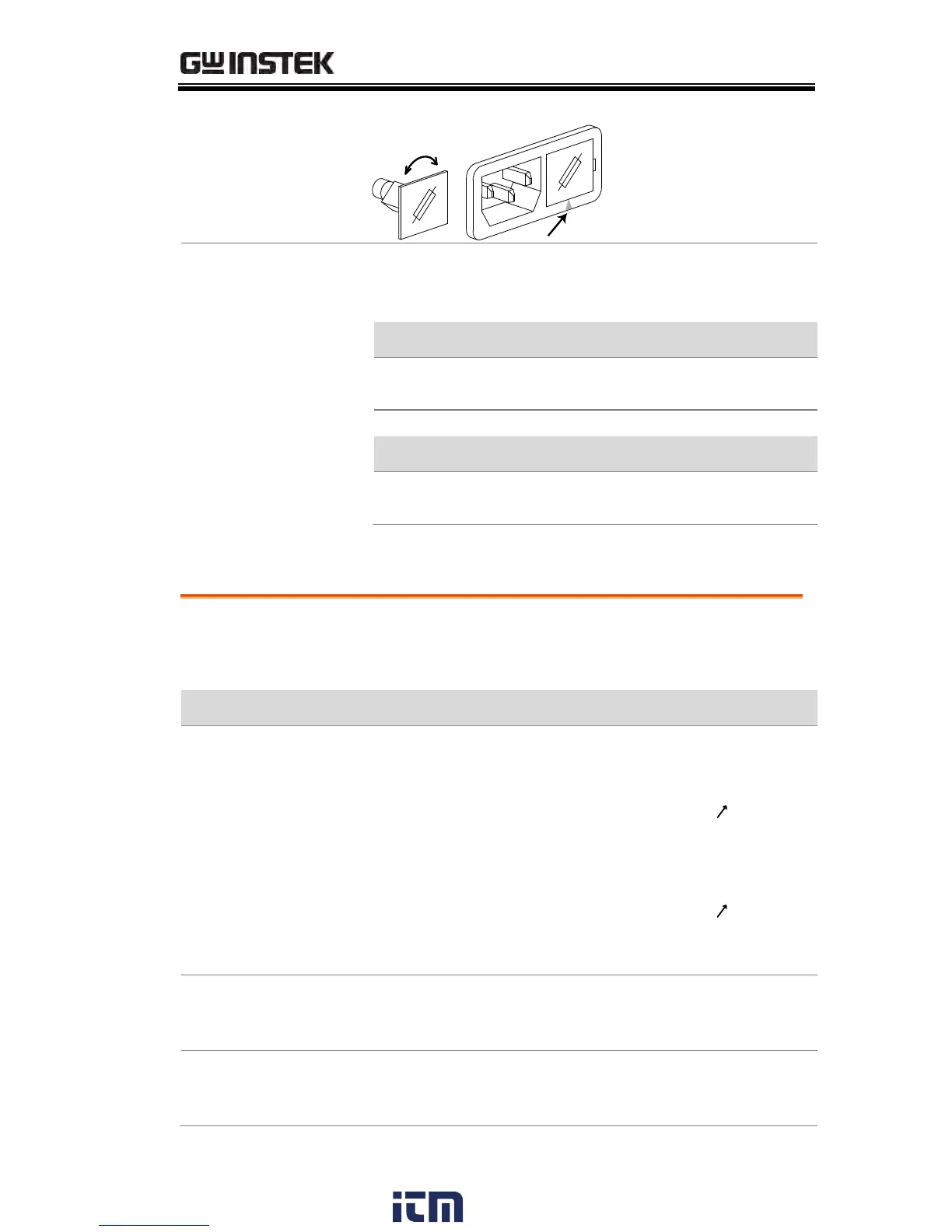

Rating
The fuse for the GPT-98XX and the GPT-
99XX/99XXA have different ratings:
GPT-98XX:
100V/120V
T5A 250V
220V/230V
T2.5A 250V
GPT-99XX/99XXA:
100V/120V
T10A 250V
220V/230V
T6.3A 250V
Test Errors
The following error messages or messages may appear on the GPT
screen when configuring or running tests.
Error Messages
Description
TIME ERR
For ACW tests.
GPT-98XX:
TIME ERR is displayed when HI SET ≥
30.00mA~40.00mA and if the RAMP time
and the TEST TIME setting is > 240 seconds.
GPT-99XX/99XXA:
TIME ERR is displayed when HI SET ≥
80.00mA~100.0mA and if the RAMP time
and the TEST TIME setting is > 240 seconds.
OVER 50W (GPT-98XX)
For DCW tests. OVER 50W is displayed if the
HI SET setting multiplied by the Voltage setting
is greater than 50W (GPT-98XX only).
OVER 100W
(GPT-99XX/99XXA)
For DCW tests. OVER 100W is displayed if the
HI SET setting multiplied by the Voltage setting
is greater than 100W (GPT-99XX/99XXA only).
