GW Instek LCR-914 Series User Manual

LCR-914/915/916 User Manual
14

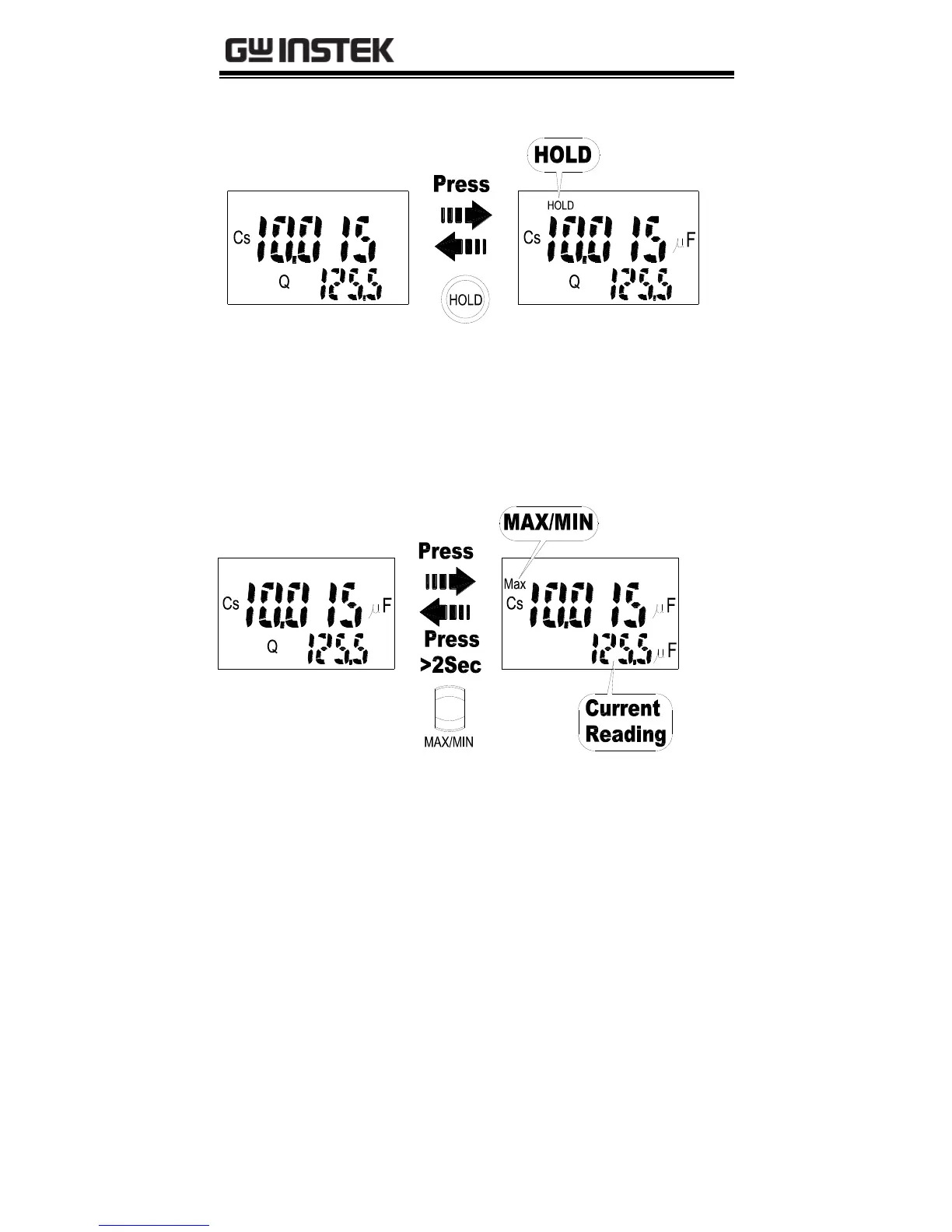

Display Hold
• Press the HOLD button to hold the reading on the meter, press
the button again to return.
Display MAX/MIN
The MAX/MIN mode records the maximum and the minimum
input values. When the inputs go below the recorded minimum
value or above the recorded maximum value, the meter beeps
and records the new value.
To use the MAX/MIN mode, follow the steps below:
1. Press the MAX/MIN button to enter the MAX/MIN mode. The
“MAX” icon appears on the display. The maximum value is
shown on the main display and the current value is shown on
the sub display.
2. Press the MAX/MIN button to select the MAX or MIN mode.
3. Press the MAX/MIN button for 2 seconds to exit this mode.
Note: This function is only for LCR-916.
