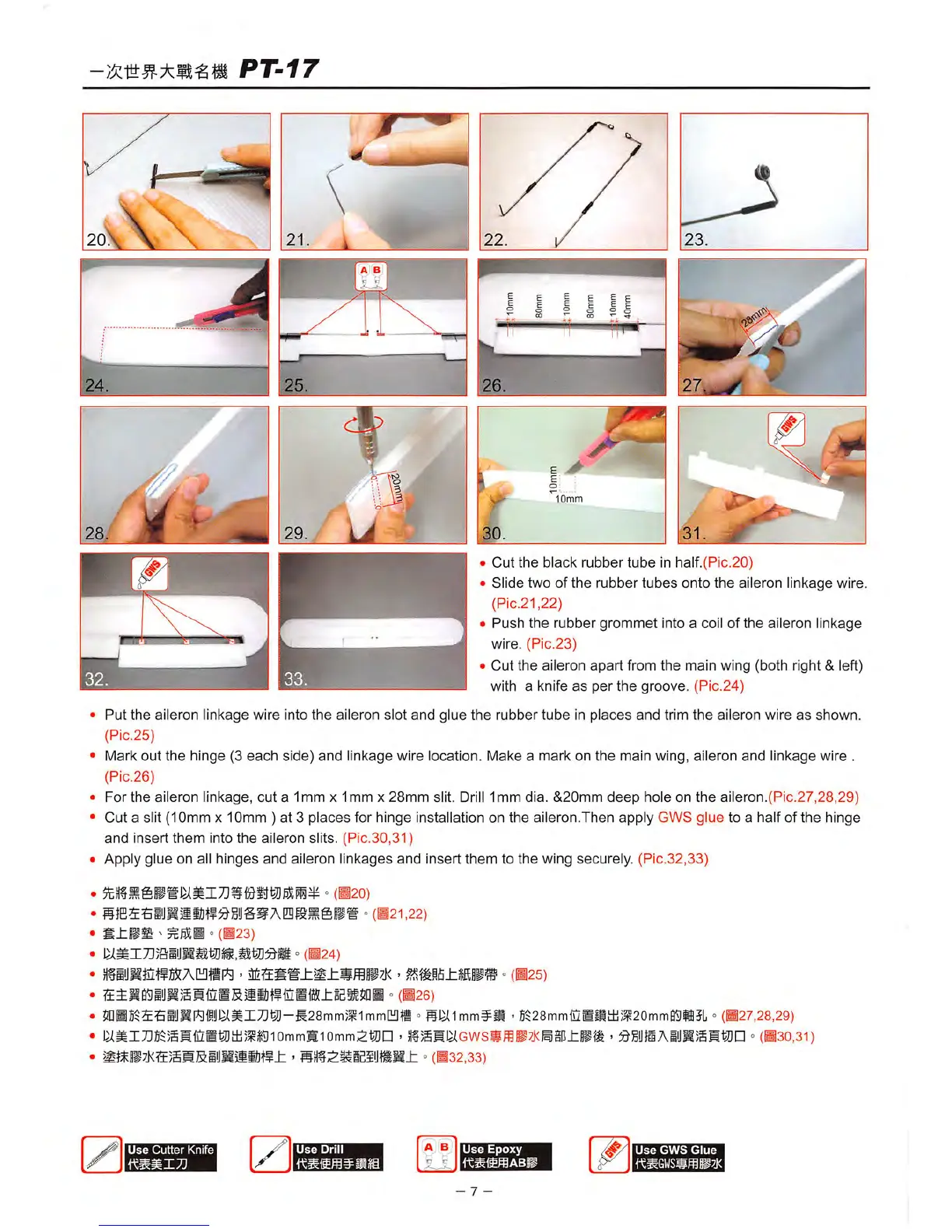

PT-17
Use
Cutter
Knife
Use
Drill
A B
10mm
•
Cut
the
black
rubber
tube
in half.(Pic.20)
• Slide two of
the
rubber
tubes
onto
the
aileron linkage wire.
(Pic.21,22)
•
Push
the
rubber
grommet
into a coil of
the
aileron linkage
wire. (Pic.23)
•
Cut
the
aileron
apart
from
the
main
wing (both right & left)
with a knife
as
per
the
groove.
(Pic.24)
Put
the
aileron
linkage
wire into
the
aileron
slot
and
glue
the
rubber
tube
in
places
and
trim
the
aileron
wire
as
shown.
(Pic.25)
Mark
out
the
hinge
(3
each
side)
and
linkage wire location. Make a
mark
on
the
main wing, aileron
and
linkage wire .
(Pic.26)
For
the
aileron linkage,
cut
a 1mm x 1mm x
28mm
siit.
Drill
1mm dia. &20mm
deep
hole
on
the
aileron.(Pic.27,28,29)
Cut
a slit
(10mm
x
10mm
) at 3
places
for
hinge
installation on
the
aileron.Then
apply
GWS
glue
to a half of
the
hinge
and
insert
them
into
the
aileron slits. (Pic.30,31)
Apply
glue
on all
hinges
and
aileron
linkages
and
insert
them
to
the
wing securely.
(Pic.32,33)
°
(Ko)
"
(m2i,22)
SJiPS
^ -
(fcs)
°
(124)
HSlJSatfBSAHffiFg
- °
(125)
SiSffiiJDSMfulSjlBtf
(uUffltiiKslSOH -
(Re)
$nHi6$SeiJSF«9i!litilI7]tJ]-fi28mm;3?1mm[H]1i °
Hl-idmm#!
- B$28mm(!iliiti:i}l?20mmKlli5L ° (•27,28,29)
=(130,31)
°
(132,33)
Use
Epoxy
Use
GWS
Glue
7 -
