SPITFIRE
• K-
50mm
•>K-
70mm
96.
—- \ ©
99. 100.
25mm

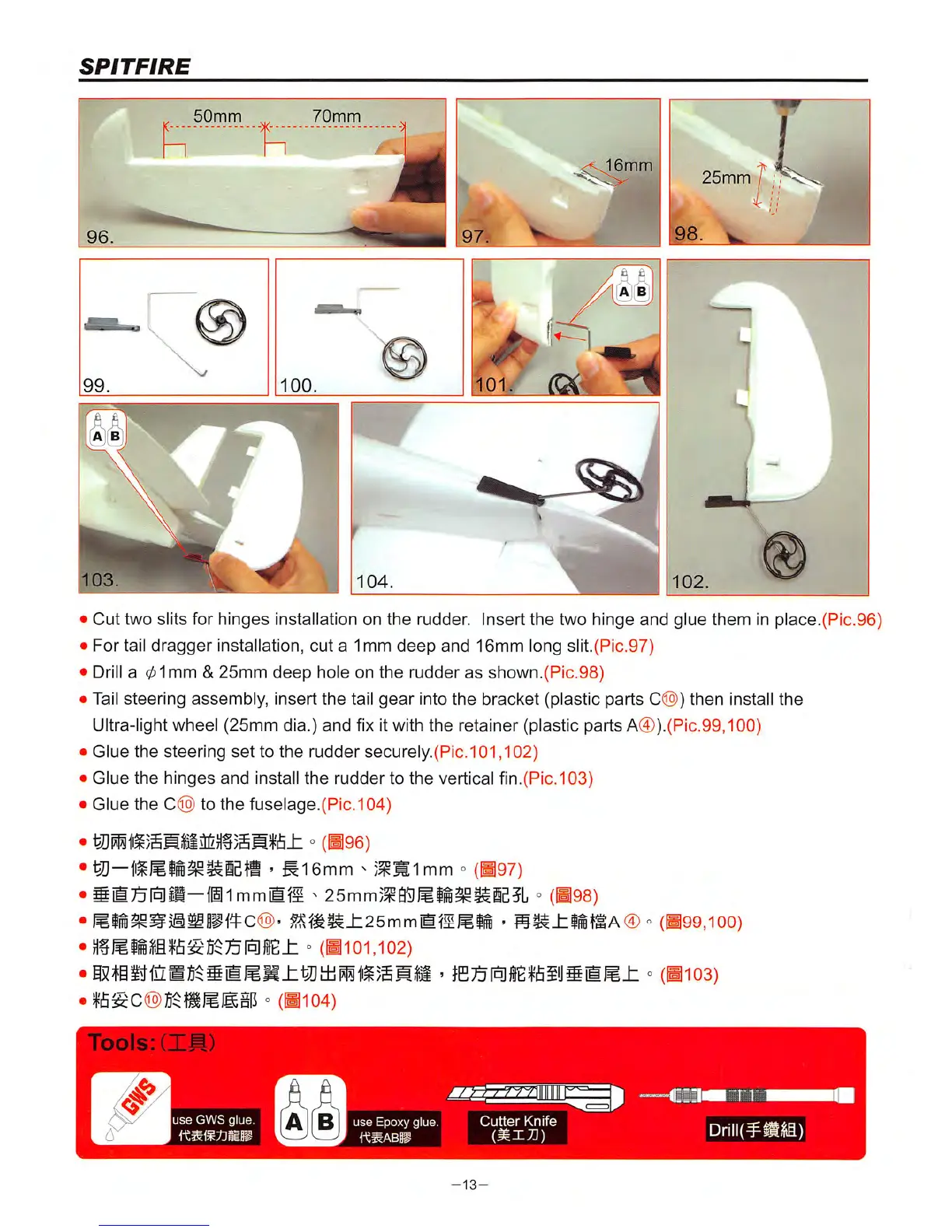

• Cut two slits for hinges installation on the rudder. Insert the two hinge and glue them in place.(Pic.96)
• For tail
dragger installation, cut a 1mm deep and 16mm long slit.(Pic.97)
•
Drill a 01mm & 25mm deep hole on the rudder as shown.(Pic.98)
• Tail steering assembly, insert the tail gear into the bracket (plastic parts C®) then install the
Ultra-lightwheel (25mm dia.) and fix itwith the retainer (plastic parts A®).(Pic.99,100)
• Glue the steering set to the rudder securely.(Pic.101,102)
• Glue the hinges and install the rudder to the vertical fin.(Pic.103)
• Glue the C® to the fuselage.(Pic.104)
• " (BOB)
• ' RiBmm ^ )^Mlmm ° (H97)
• IHil mmiltl ^ 25mm;^0^11lfiil^^iS5L ° (H98)
• ^f^iii:25mmiifsiiii - (•99,100)
• ° (Bioi,io2)
• ° (Bios)
mm ° (B104)
use GWS glue.
use Epoxy glue.
