ASSEMBLY INSTRUCTION
Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen
Wrenches
NOTE: It is strongly recommended two or more people assembling this machine to
avoid possible injury.

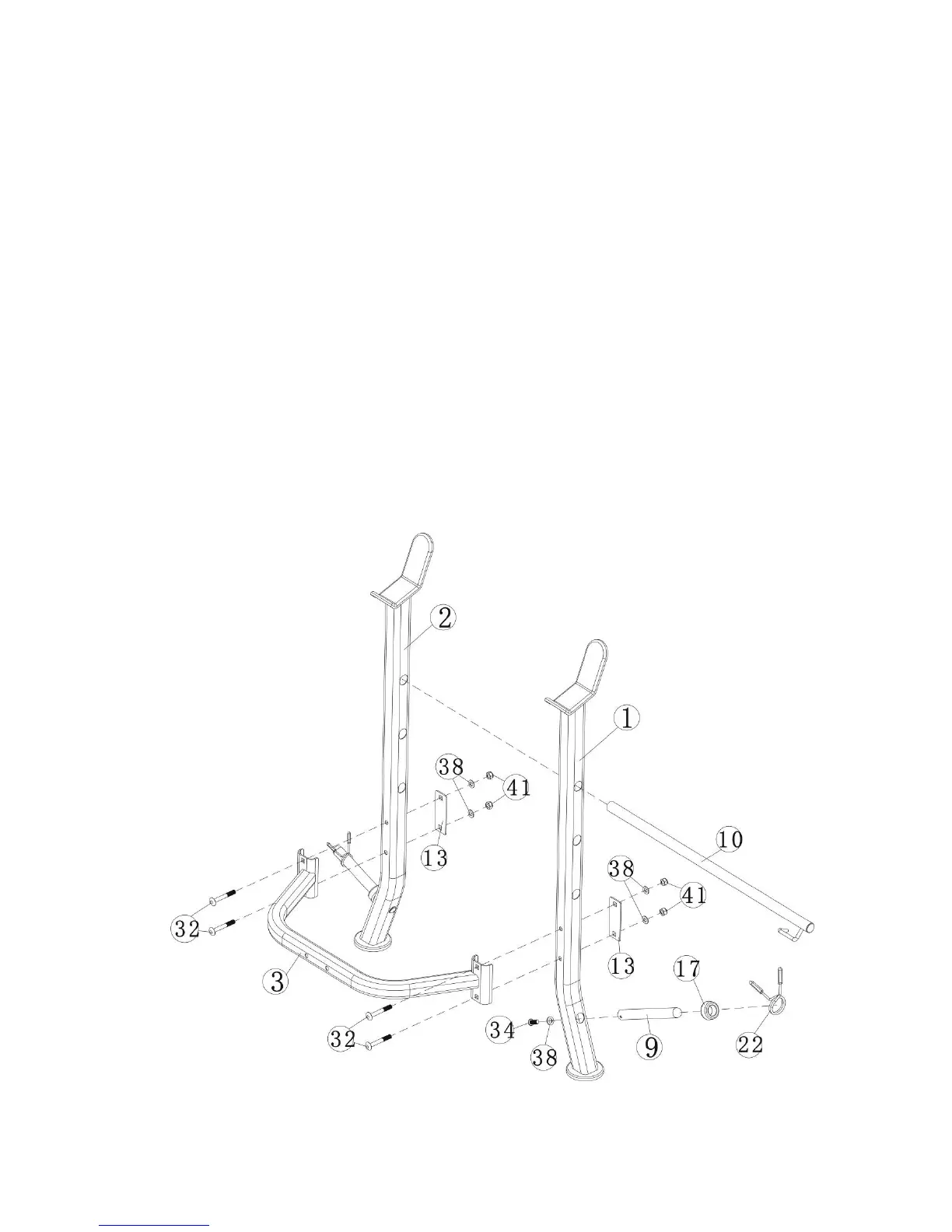

STEP 1 (See Diagram 1)
A. Connect the Left & Right Barbell Support (#1& #2) by a Cross Brace (#3) in the Mid-span.
Secure them with two M10 x 70mm Carriage Bolts (#32), one Bracket (#13), two 10
Washers (#38), and two M10 Aircraft Nuts (#41) on each end of the Cross Brace.
B. Attach a Weight Plate Post (#9) to the Right Barbell Support (#2). Secure it with one M10
x 25 mm Allen Bolt (#34) and one ￠10mm Washer (#38).Slide a Rubber Bumper (#17)
onto the Weight Plate Post (#9). Attach a Spring Collar (#22) to the Post. Repeat the
same step to install the other side.
C. Place the Backrest Incline Support (#10) between the two Barbell Supports to obtain
desired incline.
4
DIAGRA1
