Gymtech 50510 - Step 4: Seat and Backrest Pad Attachment

12 pages

To Next Page

To Previous Page

A. Attach Seat Pad(#15) onto the Seat Support(#4), Align the hole, secure with four

M6x35mm Hex Bolt(#36) and four ￠6mm Washer (#40).

B. Attach the front side holes of the two Backrest Support (#12) onto each side of the “pivot”

on the mid of the Seat Support (#4). Place another side of the two Backrest Support (#12)

onto the Backrest Incline Support (#10), place the Backrest Pad (#14) onto the two

Backrest Pad Support (#12), align the holes, secure with four M8x38mm Hex Bolt (#37)

and four ￠6mm Washer (#40).

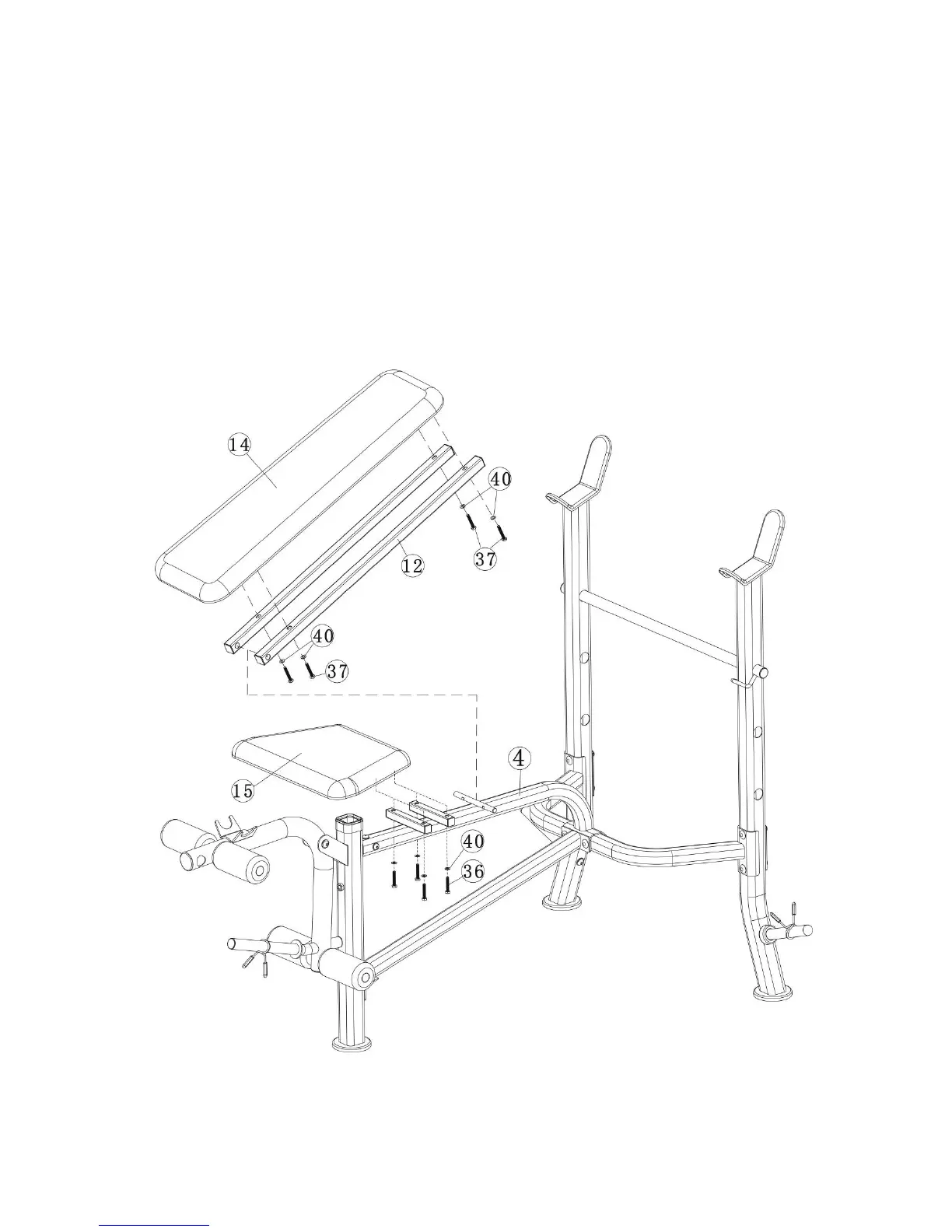

DIAGRAM 4
