STEP 2 (See Diagram 2)

A. Attach the Front Stabilizer (#5) to the Seat Support (#4). Secure it with three M8 x 15mm

Allen Bolts (#35) and Ø8mm Washers (#39). DO NOT tighten the Bolts yet.

B. Attach the Seat Support (#4) and the Cross Beam (#7) to the Cross Brace (#3). Align the

hole and secure with two M10 x 60mm Carriage Bolts (#31), two Ø10 Washers (#38), and

two M10 Aircraft Nuts (#41). DO NOT tighten the Bolts yet.

C. Attach the other end of Cross Beam (#7) to the Front Stabilizer (#5). Secure it with one

M8 x 15 mm Allen Bolt (#35) and Ø8mm Washer (#39).

Securely tighten all Nuts and Bolts previously installed.

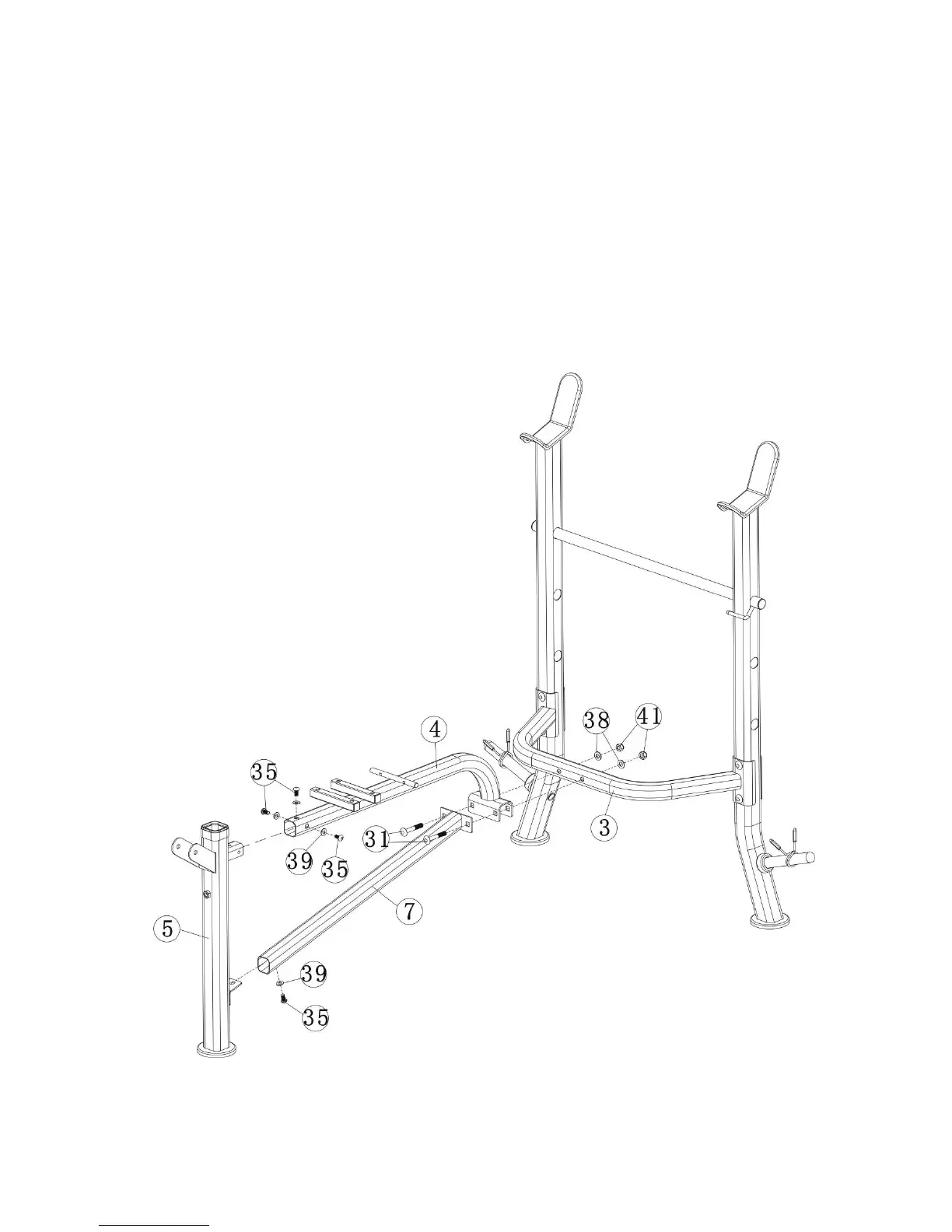

DIAGRAM 2
