3

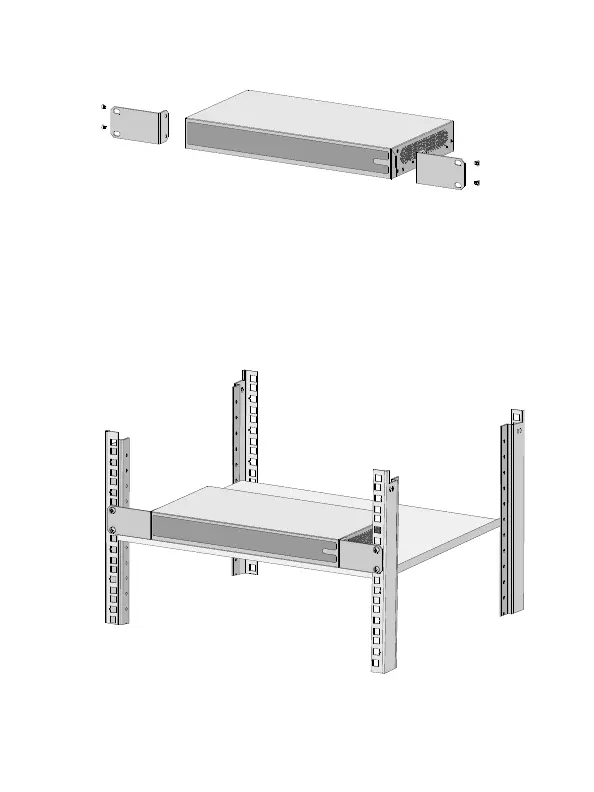

Figure 1 Attaching mounting brackets to the switch
3. Place the switch on a rack shelf in the rack. Push the switch in
until the oval holes in the brackets align with the mounting holes
in the front rack posts.
4. Use screws to secure the mounting brackets to the front rack
posts.
Figure 2 Mounting the switch in the rack
