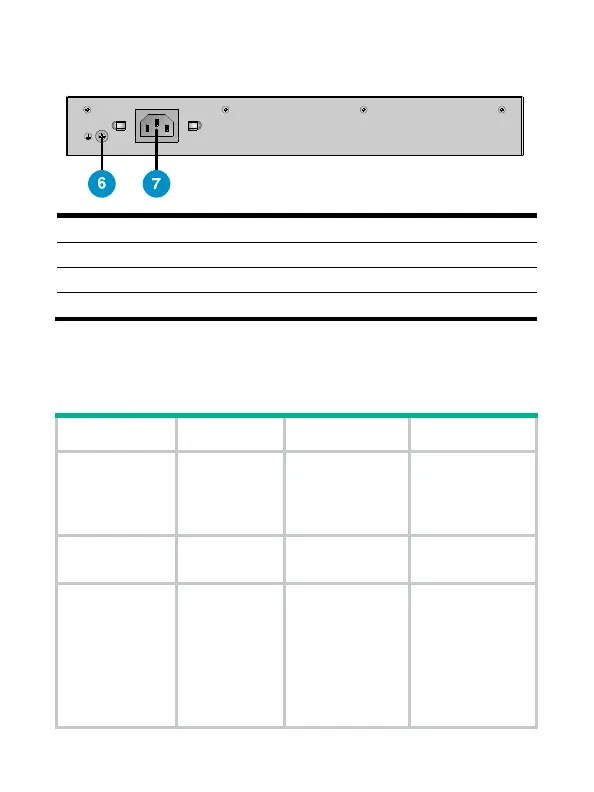

Figure 14 S16G-U/S24-U/S24G-U rear panel
(1) Security slot (2) 10/100/1000Base-T copper port
(3) DC power receptacle (4) 10/100Base-TX copper port
(5) 100Base-TX copper port (uplink port)
(6) Grounding screw (7) AC power receptacle
Technical specifications
Table 2 Technical specifications (1)
Item S8G-U S9-PWR S16G-U
Dimensions
(H × W × D)
27 × 158 ×
105 mm
(1.06 × 6.22
× 4.13 in)
27 × 235 ×
105 mm (1.06
× 9.25 × 4.13
in)
44 × 330 × 173
mm (1.73 ×
12.99 × 6.81
in)
Weight
≤ 0.4 kg
(0.88 lb)
≤ 0.5 kg (1.10
lb)
≤ 1.4 kg (3.09
lb)
Port
8 × 10/100/
1000Base-
T copper
port
8 ×
10/100Base-T
X copper port
1 ×
100Base-TX
copper port
(uplink port)
16 ×
10/100/1000
Base-T copper
port
