7
To connect the grounding cable:
1. Use a Phillips screwdriver to remove the grounding screw from
grounding hole in the rear panel of the chassis. Use the
grounding screw to attach the ring terminal of the grounding
cable to the grounding hole. Fasten the grounding screw into the
grounding hole.
2. Use needle-nose pliers to make a loop at the other end of the
cable.
3. Remove the hex nut from a grounding post on the grounding
strip. Attach the loop to the grounding post and fasten the hex
nut.

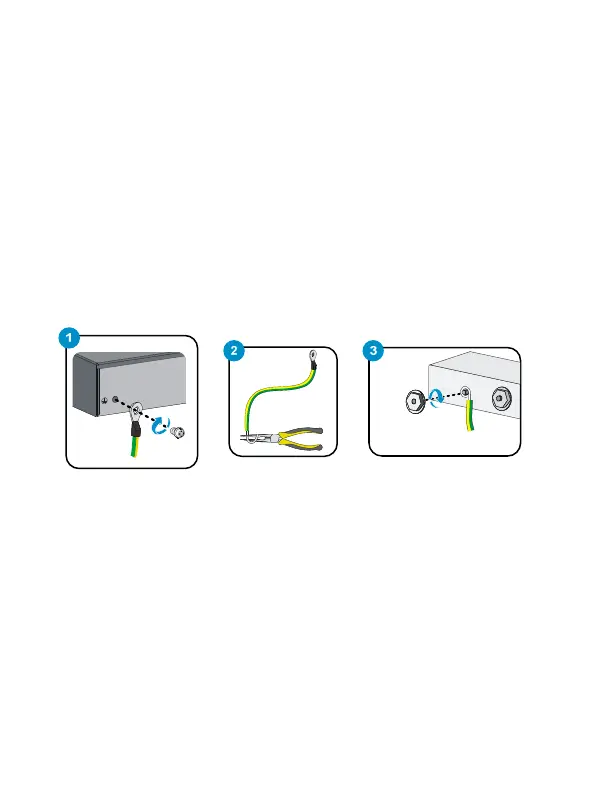

Figure 5 Connecting the grounding cable
Connecting the power cord
Connecting the AC power cord
The S16G-U, S24-U, and S24G-U switches support AC power input.
To connect the AC power cord:
1. Make sure the switch is reliably grounded.
2. Connect one end of the AC power cord to the AC power
receptacle on the switch.
3. Connect the other end of the AC power cord to an AC power
source.
