■ RS449 DTE cable: DB-37 (male) connector at the network end
■ RS449 DCE cable: DB-37 (female) connector at the network end
■ RS530 DTE cable: DB-25 (male) connector at the network end
■ RS530 DCE cable: DB-25 (female) connector at the network end
At one end of these cables is a DB-28 connector and at the other end is the
connector that varies with the port at the network side.
■ V.24 DTE cable

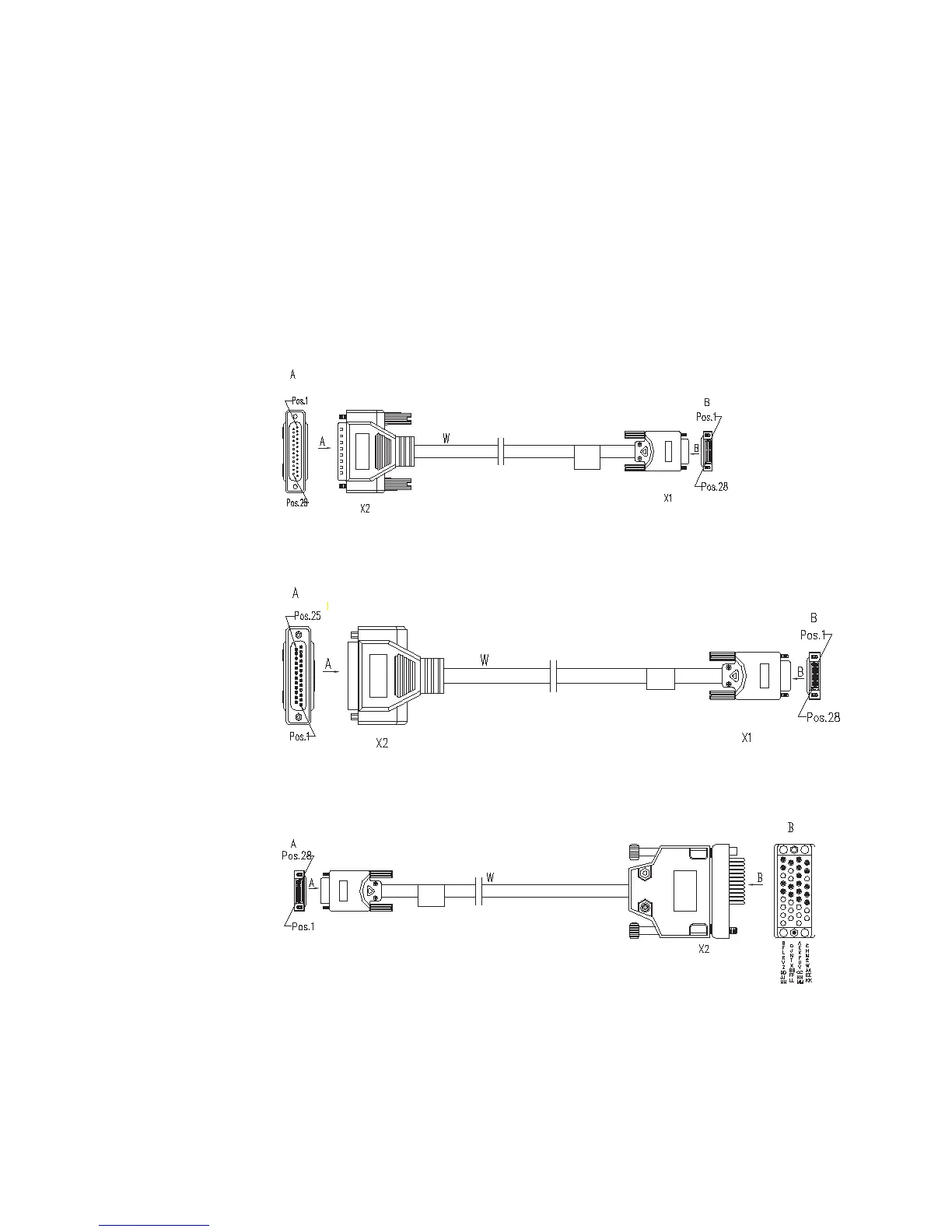

Figure 76 V.24 DTE cable
■ V.24 DCE cable
Figure 77 V.24 DCE cable
■ V.35 DTE cable
Figure 78 V.35 DTE cable
■ V.35 DCE cable
