2-4

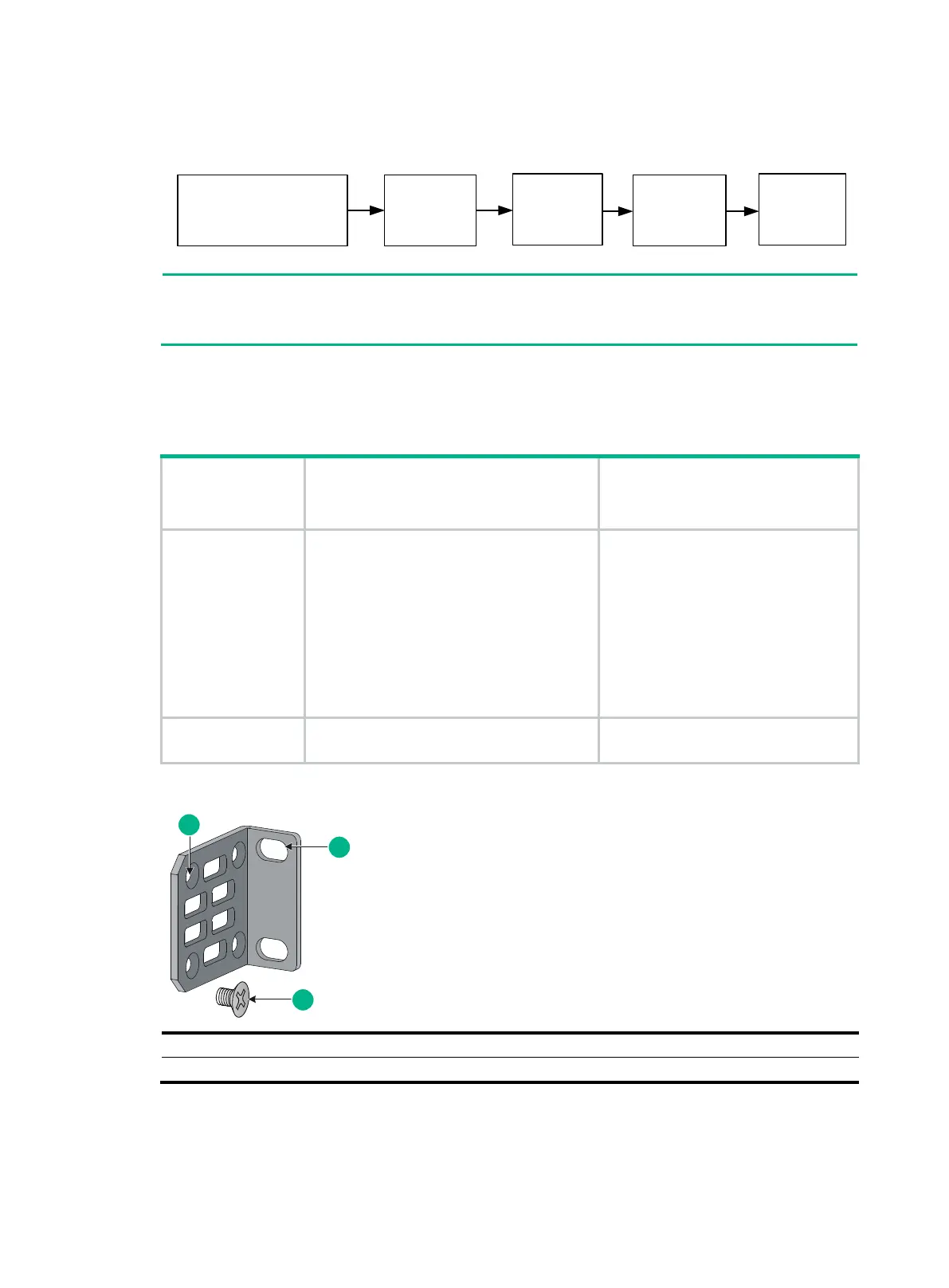

Figure2-3 Procedure for installing the switch in a 19-inch rack by using front and rear
mounting brackets
NOTE:
If a rack shelf is available, you can put the switch on the rack shelf, slide the switch to an appropriate
location, and attach the switch to the rack by using the mounting brackets.
Installation accessories
Table2-3 Installation accessories
Switch model
Front mounting brackets (as shown
in Figure2-4)
Rear mounting brackets and
shoulder screws (as shown in
Figure2-5)
S6520X-30QC-EI
S6520X-54QC-EI
S6520X-30QC-HI
S6520X-54QC-HI
S6520X-30HC-EI
S6520X-54HC-EI
S6520X-30HC-HI
S6520X-54HC-HI
Provided N/A
S6520X-54HC-UP
WR-EI
Provided Provided
Figure2-4 Front mounting bracket
(1) Screw hole for attaching the bracket to the switch
(2) Screw hole for attaching the bracket to the rack
(3) M4 screw
Attach the front
mounting
brackets to the
switch
Attach the
shoulder
screws to the
switch
Attach the
rear mounting
brackets to
the rack
Select an installation position
for the front mounting brackets
(near the port side or power
supply side
)
Mount the
switch in the
rack
1
2
3
