5-4
If you have chosen 9600 bps, you do not need to modify the HyperTerminal’s bits per second, and
therefore you can skip Step 4 and 5 below and proceed to Step 6 directly. In this case, the system will
not display the above information.
Step 4: Select [File/Properties] in the HyperTerminal window, click <Configuration> in the popup dialog
box, and select the bits per second of 115200 bps in the appeared console port configuration dialog box.

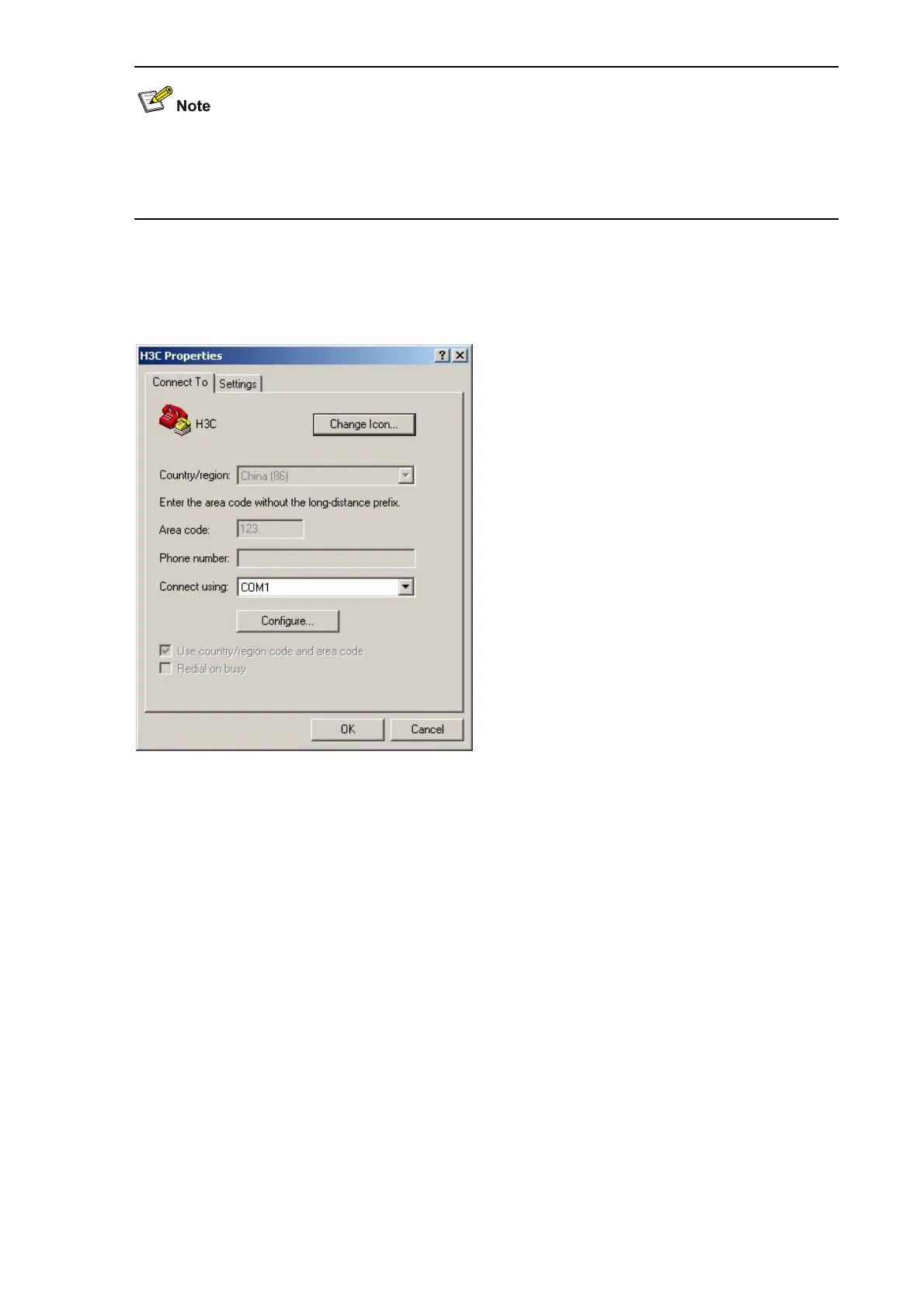

Figure 5-1 Properties dialog box
