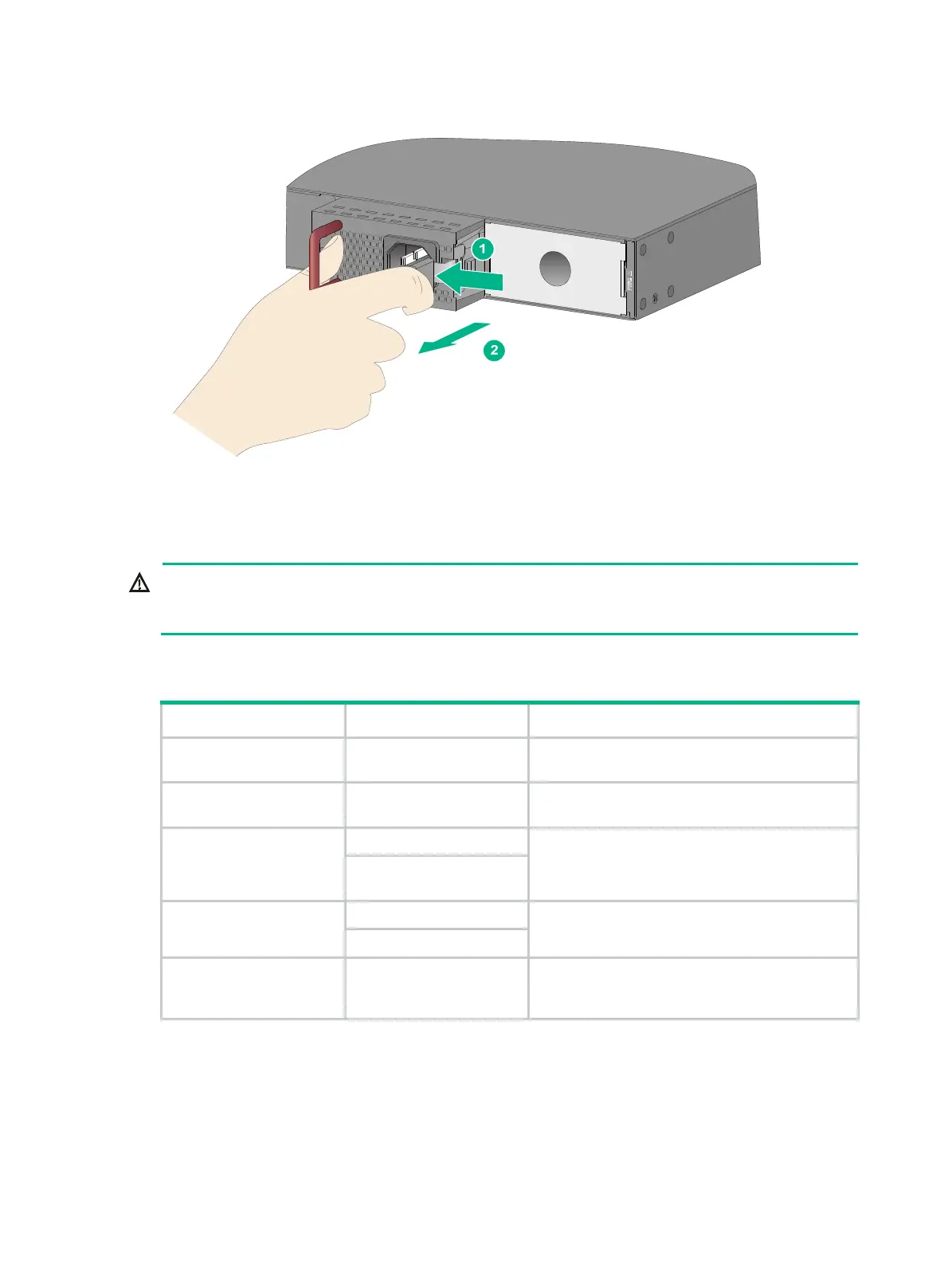

Figure 28 Removing a power module
Connecting the power cord
WARNING!
Provide a circuit breaker for each power input. Make sure the circuit breaker is off before connecting
the power cord.
Table 5 Power source options and power cord connection procedures for the power
modules
Power module model Power source option Power cord connection procedure
Built-in power module AC power source
Connecting the power cord for a built-in AC power
modu
le
PSR75-12A/PSR150-A1 AC power source
Connecting the power cord for a
PSR75-
12A/PSR150-A1 power module
PSR150-D1
–48 VDC power source
Connecting the power cord for a
PSR15
0-D1/PSR560-56D power module
H3C RPS: RPS800-A or
RPS1600-A
PSR560-56D
–48 VDC power source
Connecting the power cord for a
PSR150-D1/PSR560-56D power module
H3C RPS: RPS1600-A
PSR360-56A/PSR720-56
A/PSR1110-56A
AC power source
Connecting the power cord for a
PSR36
0-56A/PSR720-56A/PSR1110-56A power
module
The power cord for a PSR75-12A or PSR150-A1 power module is a C13 power cord. The power cord
for a PSR360-56A, PSR720-56A, or PSR1110-56A power module is a C15 power cord (for
high-temperature equipment).
