H3C S6520X-SI Series - S6520 X-10 Xt-Si; S6520 X-16 Xt-Si

48
S6520X-10XT-SI

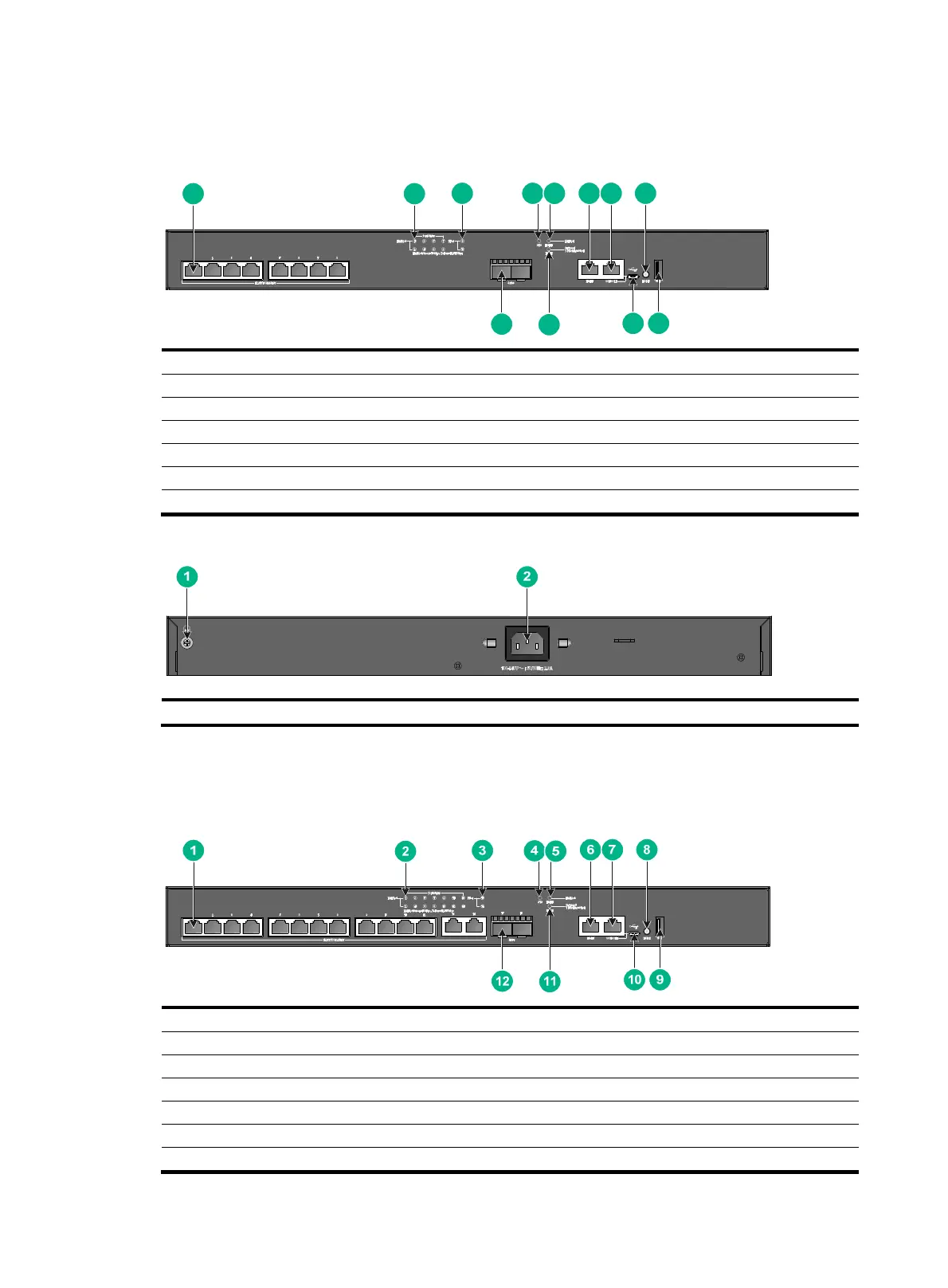

Figure 54 Front panel
(1) 10/5G/2.5G/1000BASE-T autosensing Ethernet port
(2) 10/5G/2.5G/1000BASE-T autosensing Ethernet port LED
(3) SFP+ port LED (4) System status LED (SYS)
(5) Management Ethernet port LED (LINK/ACT) (6) Management Ethernet port
(7) Console port (8) Mode button
(9) USB port (10) Micro USB console port
(11) Mode LED (MODE) (12) SFP+ port
Figure 55 Rear panel
(1) Grounding screw (2) AC power receptacle
S6520X-16XT-SI
Figure 56 Front panel
(1) 10/5G/2.5G/1000BASE-T autosensing Ethernet port
(2) 10/5G/2.5G/1000BASE-T autosensing Ethernet port LED
(3) SFP+ port LED (4) System status LED (SYS)
(5) Management Ethernet port LED (LINK/ACT) (6) Management Ethernet port
(7) Console port (8) Mode button
(9) USB port (10) Micro USB console port
(11) Mode LED (MODE) (12) SFP+ port
1
9
3 4 8
5
6 7
10
11
12
2
