H3C SecPath F10 0 Series User Manual

7-43
7 Appendix A Chassis views and
technical specifications
Chassis views
F1005/F1010
The F1005 or F1010 firewall provides the following ports on the front panel:
•
Eight 10/100/1000BASE-T autosensing Ethernet ports.
•
Two bypass ports.
•
Two combo interfaces.
•
Two USB ports.
•
One console port.
•
One drive slot.

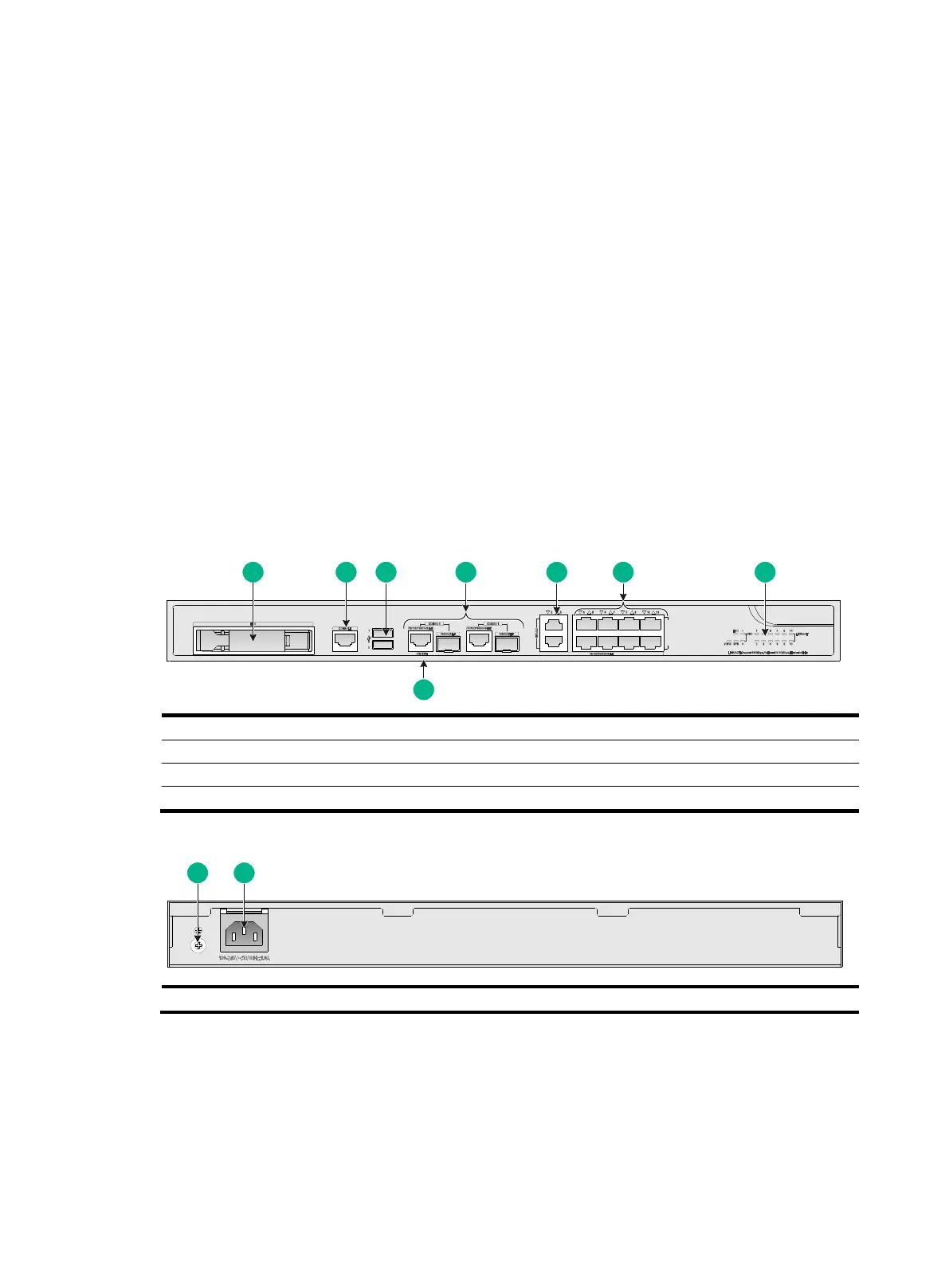

Figure7-1 Front panel
(1) Drive slot
(2) Console port
(3) USB ports (host mode, Type A connector)
(4) Combo interfaces
(5) Bypass ports
(6) 10/100/1000BASE-T copper ports
(7) LEDs
(8) Management Ethernet port (0/MGMT)
Figure7-2 Rear panel
(1) Grounding screw
(2) Power receptacle
F1020
The F1020 firewall provides the following ports on the front panel:
•
Sixteen 10/100/1000BASE-T autosensing Ethernet copper ports.
•
Eight 1000BASE-X fiber ports.
1
2
3
4
5
6
7
8
1 2
