H3C SecPath F10 0 Series User Manual

7-44
•
Two USB ports.
•
One console port.
•
One drive slot.

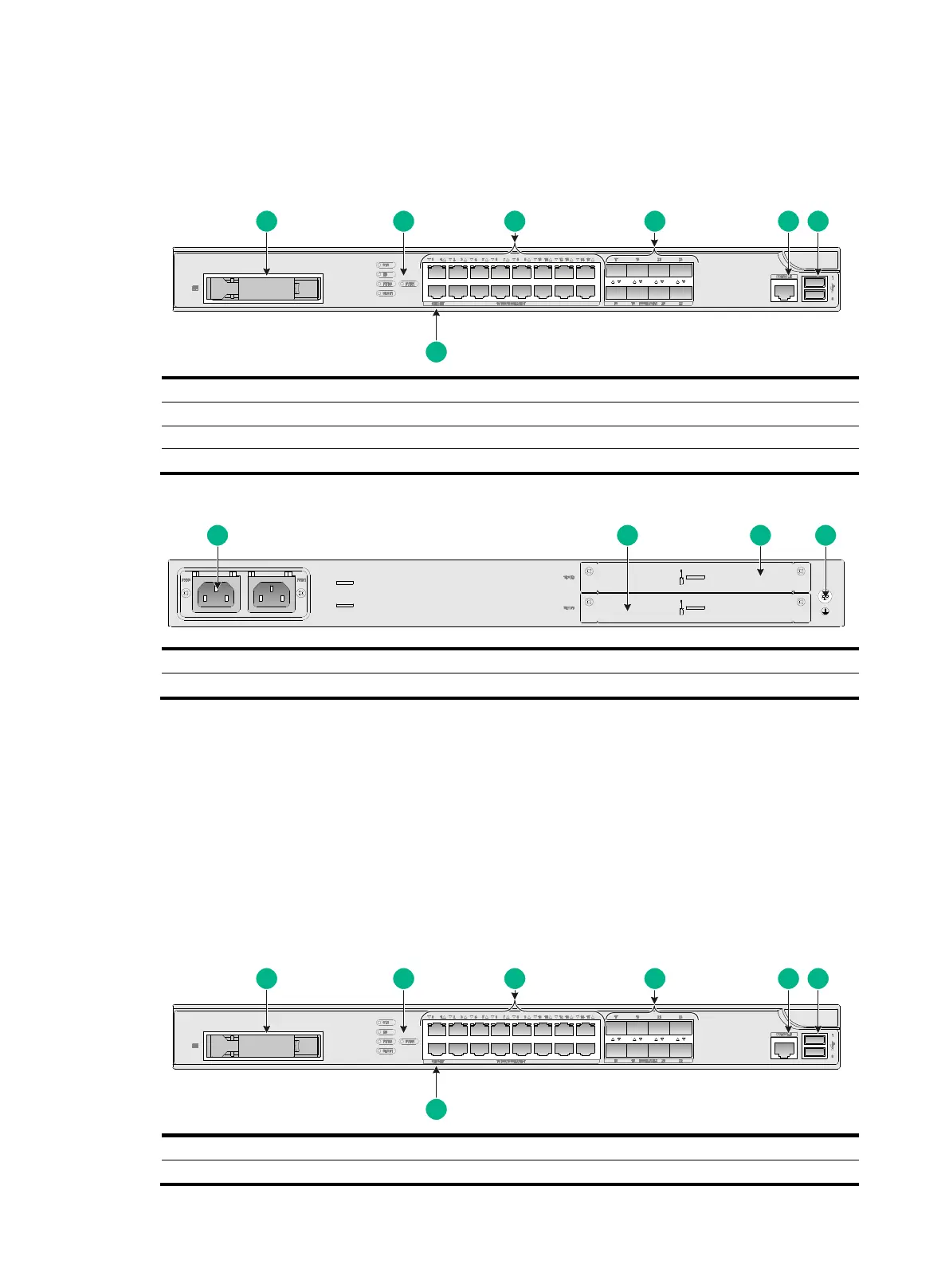

Figure7-3 Front panel
(1) Drive slot
(2) LEDs
(3) 10/100/1000BASE-T copper ports
(4) 1000BASE-X fiber ports
(5) Console port
(6) USB ports (host mode, Type A connector)
(7) Management Ethernet port (0/MGMT)
Figure7-4 Rear panel
(1) Power receptacle
(2) Interface module slot 1
(3) Interface module slot 2 (not supported)
(4) Grounding screw
F1030/F1050/F1060
The F1030, F1050, or F1060 firewall provides the following ports on the front panel:
•
Sixteen 10/100/1000BASE-T autosensing Ethernet copper ports.
•
Eight 1000BASE-X fiber ports.
•
Two USB ports.
•
One console port.
•
One drive slot.
Figure7-5 Front panel
(1) Drive slot
(2) LEDs
(3) 10/100/1000BASE-T copper ports
(4) 1000BASE-X fiber ports
1 2
3 4
65
7
1
2
3 4
1 2 3 4 65
7
