31

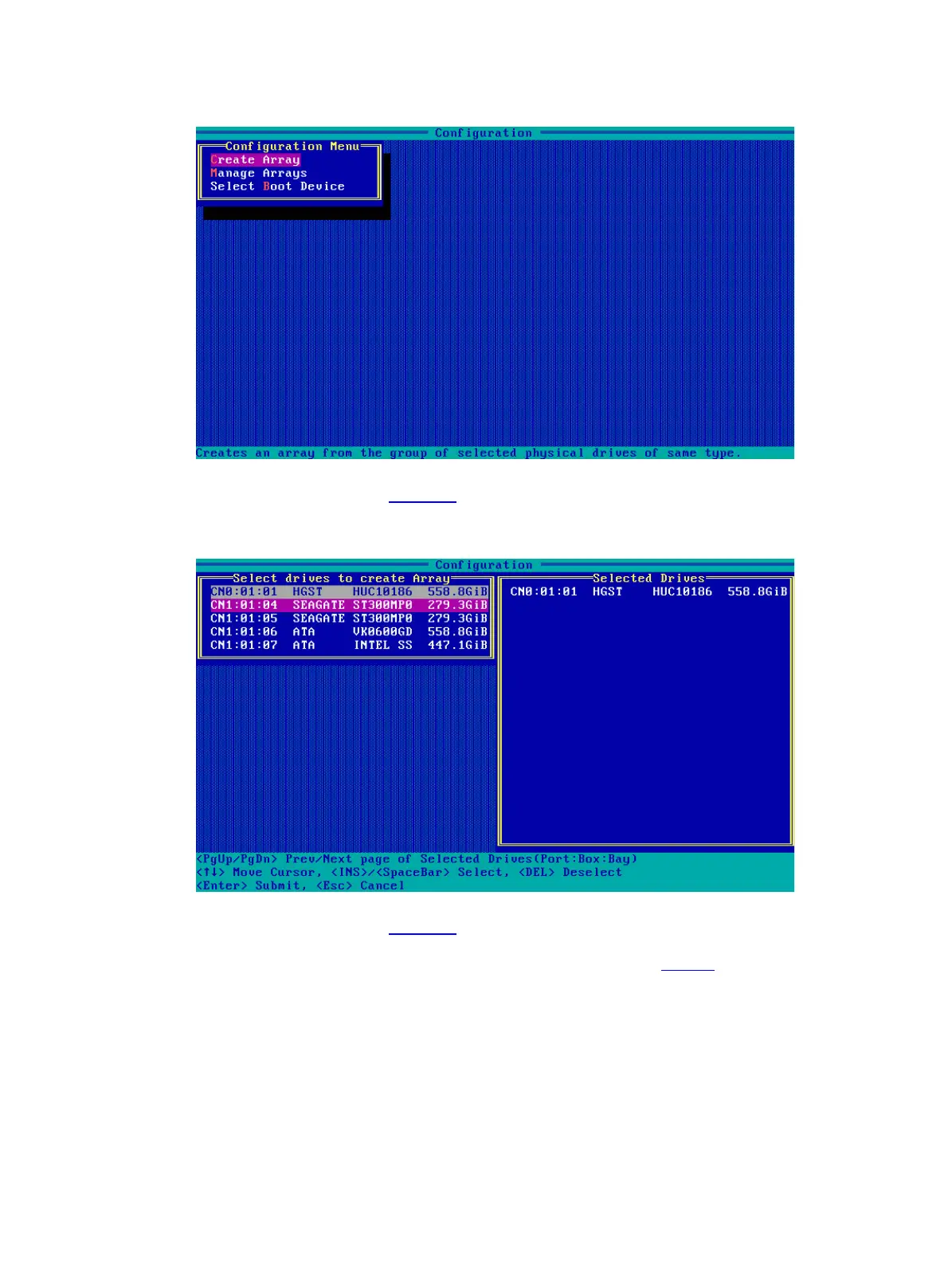

Figure 54 Array Configuration screen
3. On the screen as shown in Figure 55, navigate to a drive and press Insert or the space bar to
select it. Repeat this step to select more drives, and then press Enter.
Figure 55 Selecting the target drives
4. On the screen as shown in Figure 56, set the values for RAID Level, Logical Drive Name,
Stripe Size, Build Method, Size, and Acceleration Method. Then, select Done and press
Enter. For more information about the parameter description, see Table 4.
