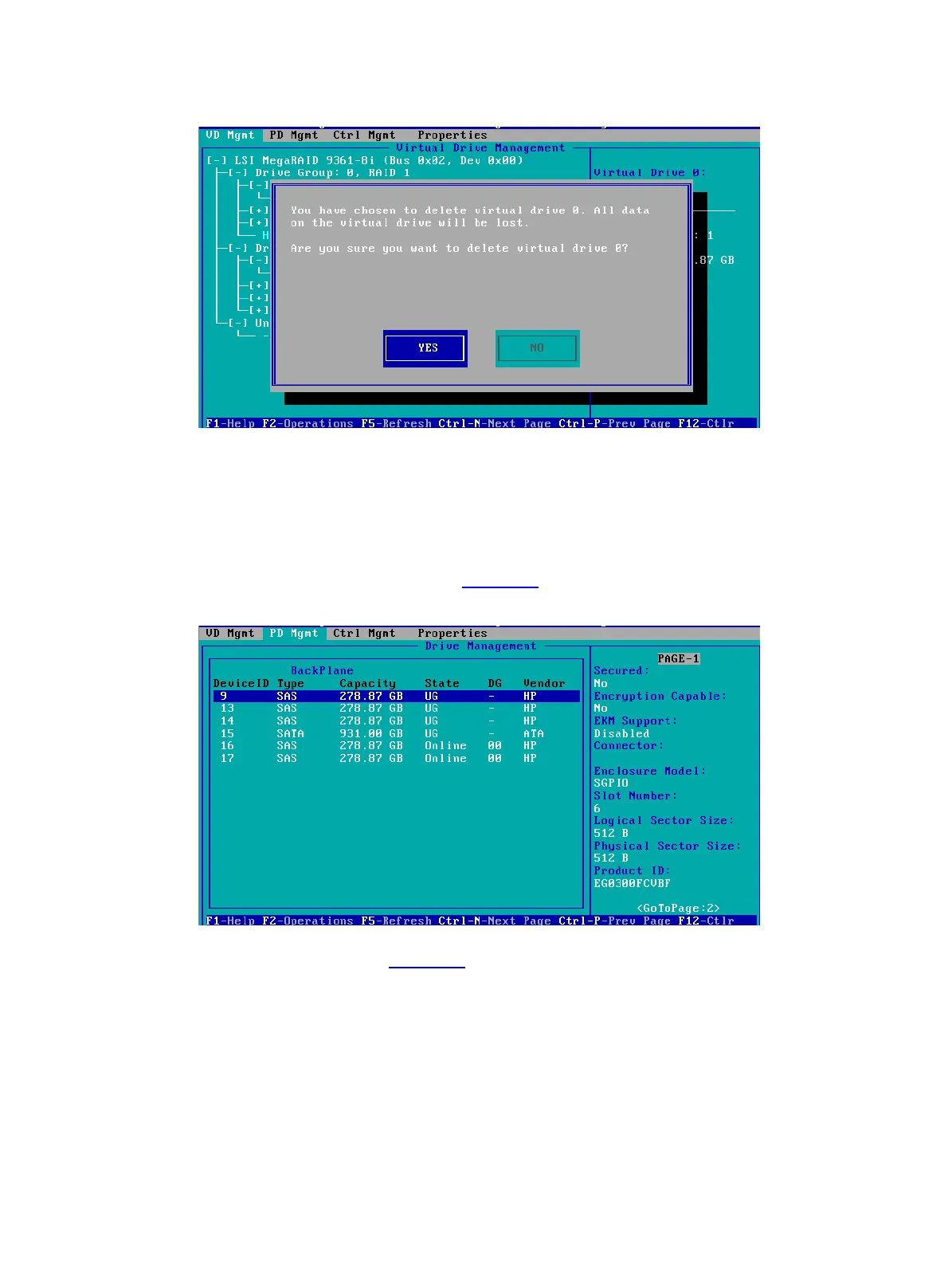

Figure 135 Confirming the operation
Locating drives
This task allows you to locate a physical drive.
To locate drives:
1. On the PD Mgmt screen as shown in Figure 136, select the target drive and press F2.
Figure 136 Selecting the target drive
2. On the screen as shown in Figure 137, select Locate > Start. The Fault/UID LED on the drive
turns steady blue. To stop locating drives, select Locate > Stop.
