Configuring boot options for the legacy mode
The storage controller does not provide legacy mode configuration screens. You can perform this
task to configure boot options for the legacy mode in the UEFI BIOS. This enables users to install
an OS in legacy mode.
To configure boot options for the legacy mode:
1. On the drive properties screen as shown in Figure 13, select Legacy OpROM Boot Device
and then press Enter.
2. In the dialog box that opens, select Yes for the system to start from a drive in legacy mode.

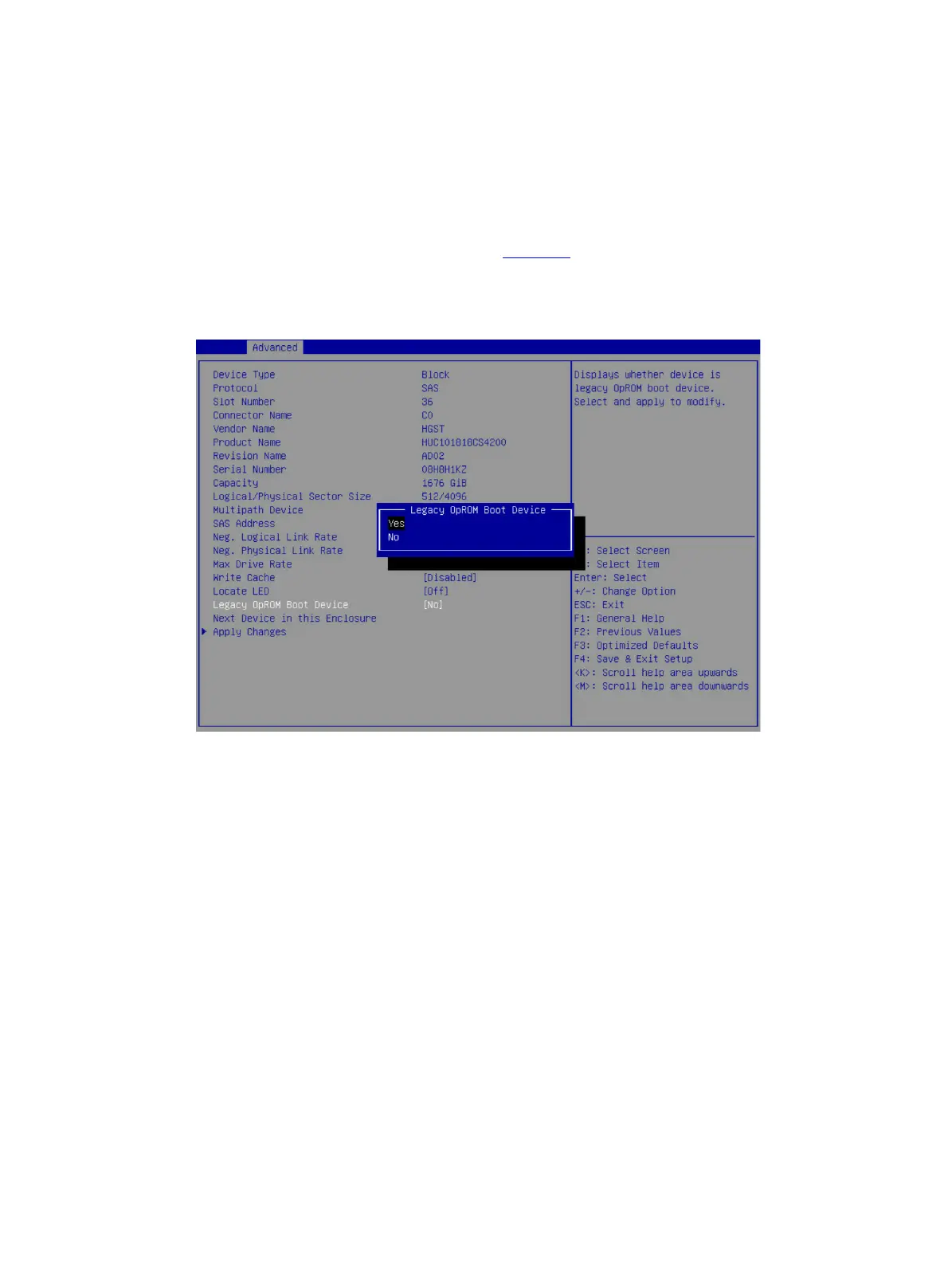

Figure 13 Drive properties screen
3. Select Apply Changes, and press Enter.
Configuring controller settings in legacy mode
The storage controllers support the legacy mode but do not provide configuration screens in legacy
mode.
