14
Example: Updating iFIST on an H3C UniServer
R6900 G3 server
This example applies to iFIST upgrade in UEFI boot mode on the H3C UniServer R6900 G3 server.
To upgrade iFIST in UEFI boot mode:
1. Sign in to HDM.
2. Mount the iFIST image file to the HDM remote console. This example uses an image file stored
on a virtual CD.
a. On the HDM Web interface, navigate to the Remote Control > Remote Console page.
b. Launch the remote console.
c. Select Media > Virtual Media Wizard from the top menu bar.
The Virtual Media window opens and displays the CD/DVD tab by default, as shown
in Figure 18.

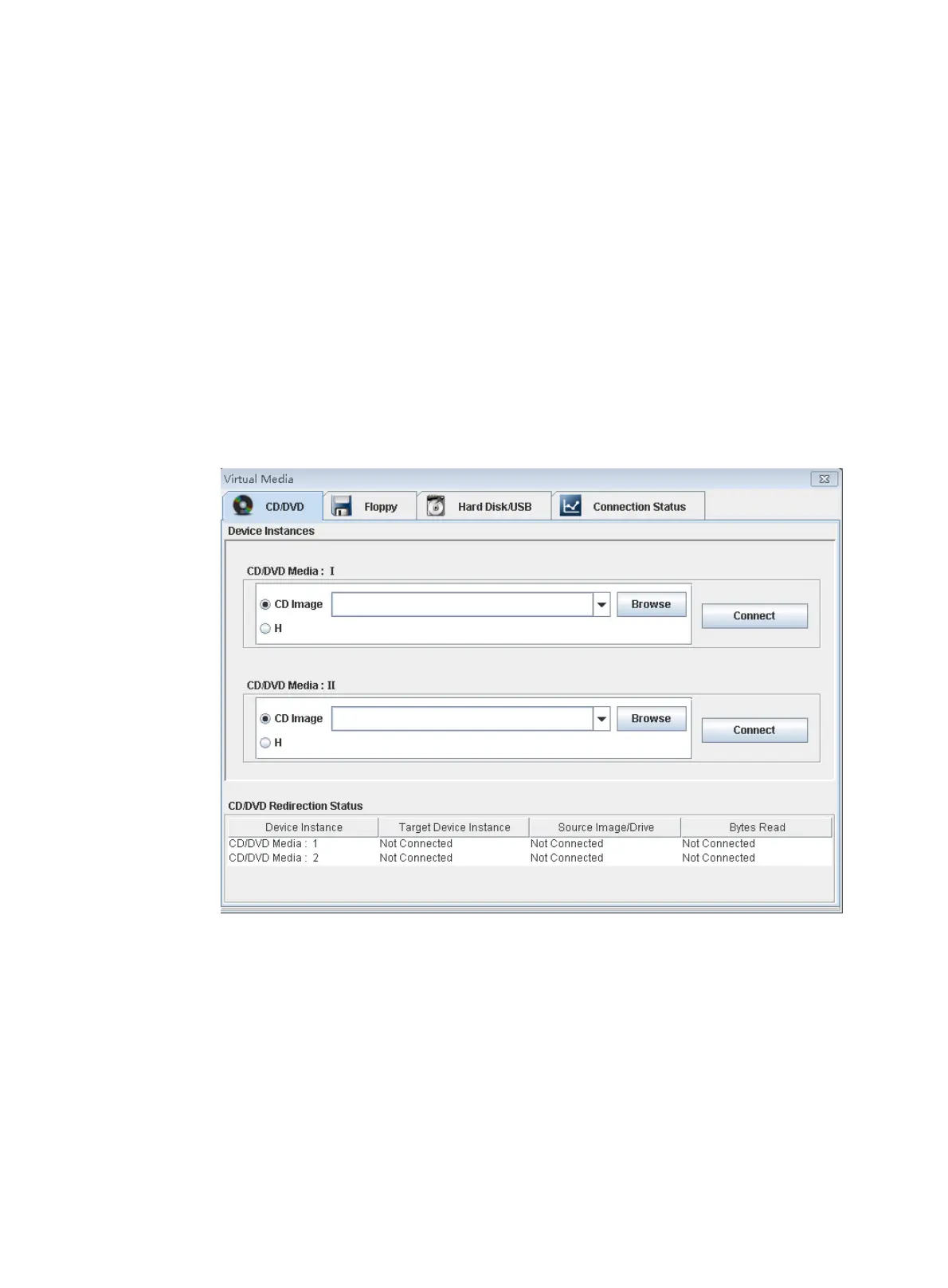

Figure 18
Virtual Media window
d. Click Browse next to a CD Image field to select the iFIST image file, and then click Open.
e. Click Connect.
3. Reboot the server.
The POST screen opens upon completion of the server initialization, as shown in Figure 19.
