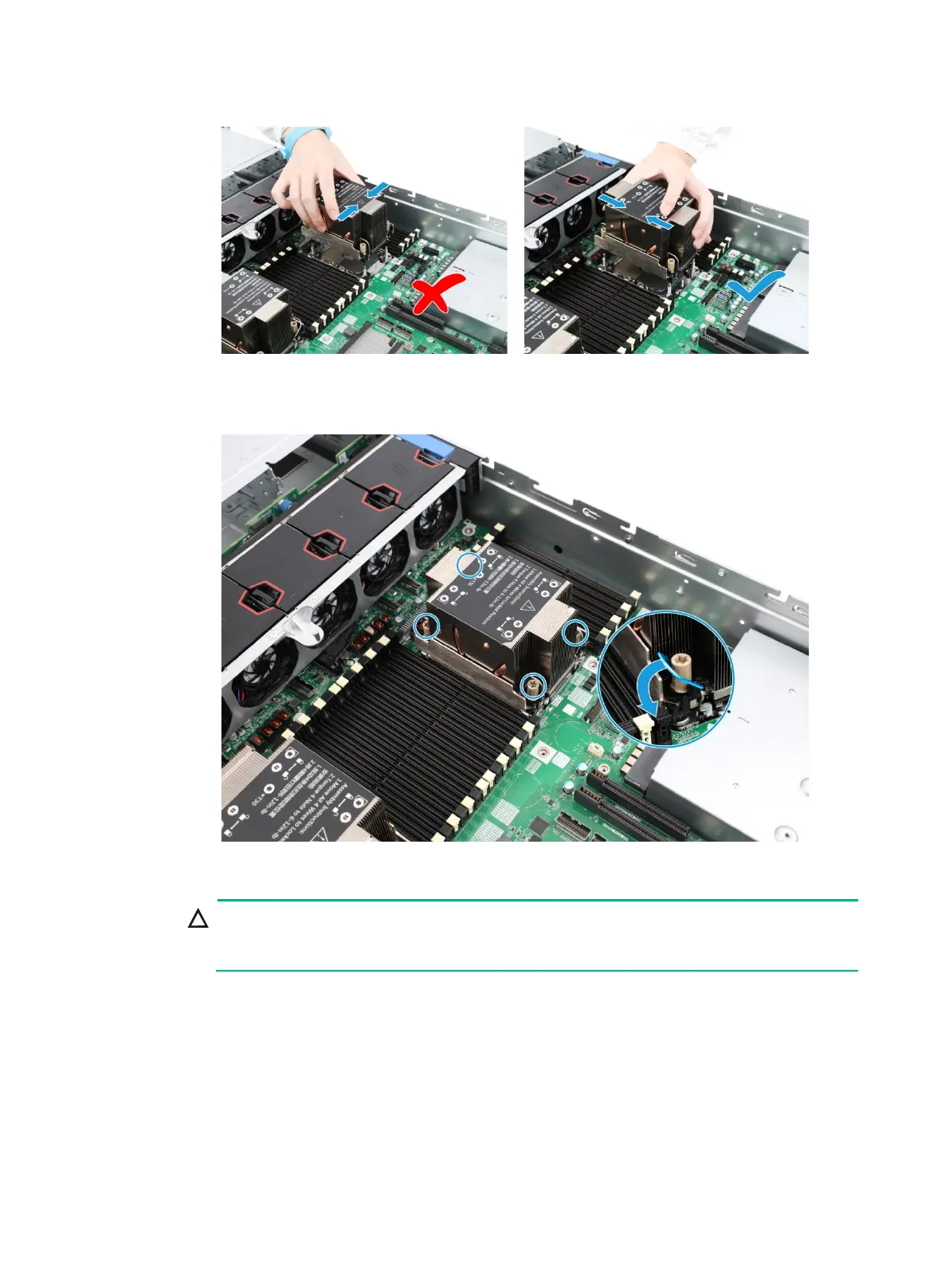

Figure1-10 Holding a heatsink
b. Press down the heatsink clips at the four corners to lock the heatsink in place.
Figure1-11 Locking the heatsink
c. Use a T30 Torx screwdriver to fasten the four captive screws on the heatsink.
screwdriver torque is in the range of 6 to 12 in-lb. As a best practice, use a torque of 8
in-lb to avoid poor contact of the processor or damage to the pins on the processor socket.
