2. Align the notch on the DIMM bottom edge with the key on the DIMM slot.
3. Insert the DIMM into the slot and make sure the retaining clips lock the DIMM in place.
The DIMM slot has a structure that prevents misalignment. If you cannot insert the DIMM into
the slot easily, the installation might be wrong. Re-orient the DIMM and then insert it into the
slot again.

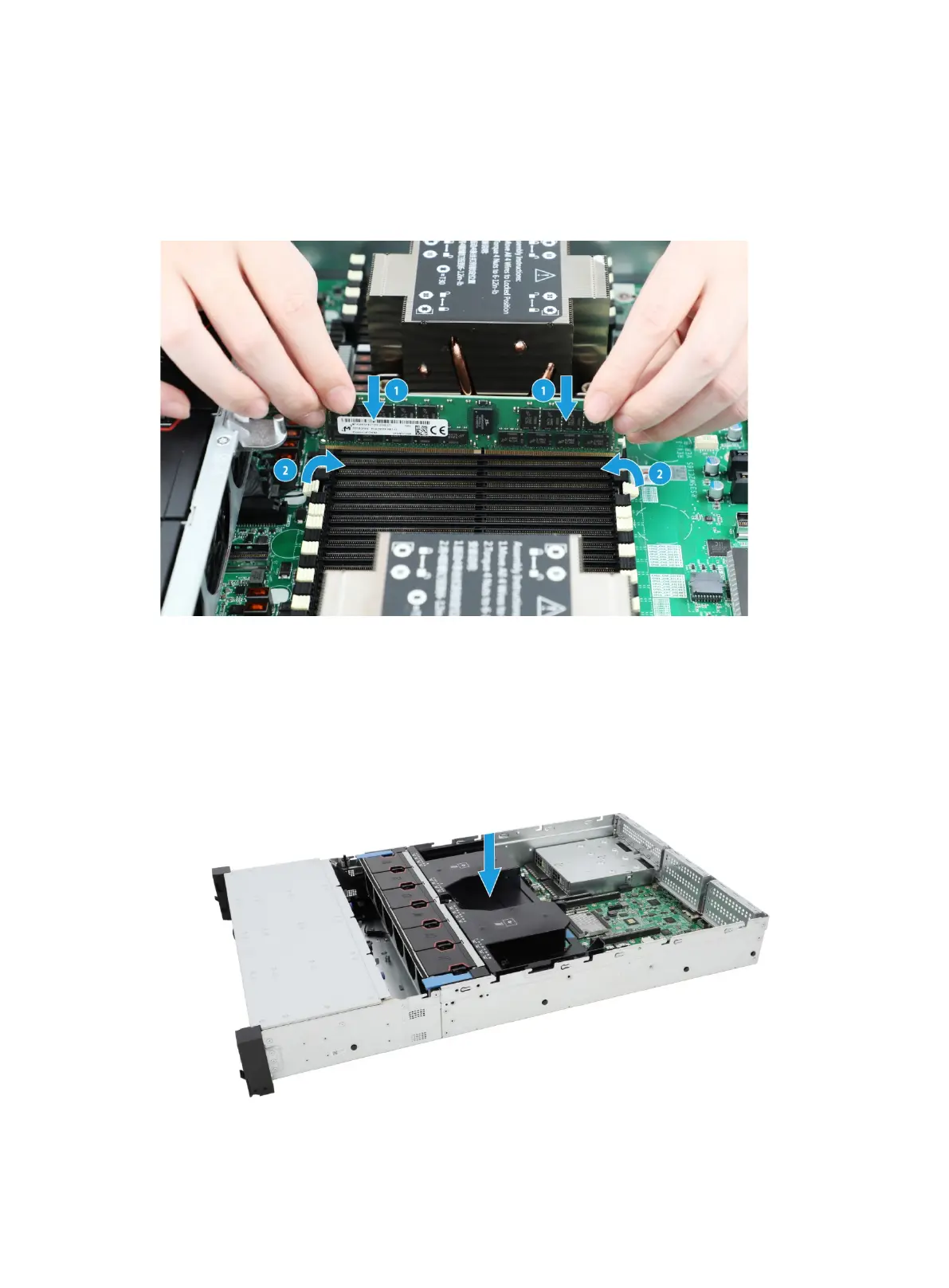

Figure1-14 Installing a DIMM
Starting the server
1. Install the chassis air baffle on the server. Align the notches on the air baffle with the pins on
the chassis side panels, and then place the air baffle into the chassis.
Figure1-15 Installing the chassis air baffle
2. Install the access panel.
