6

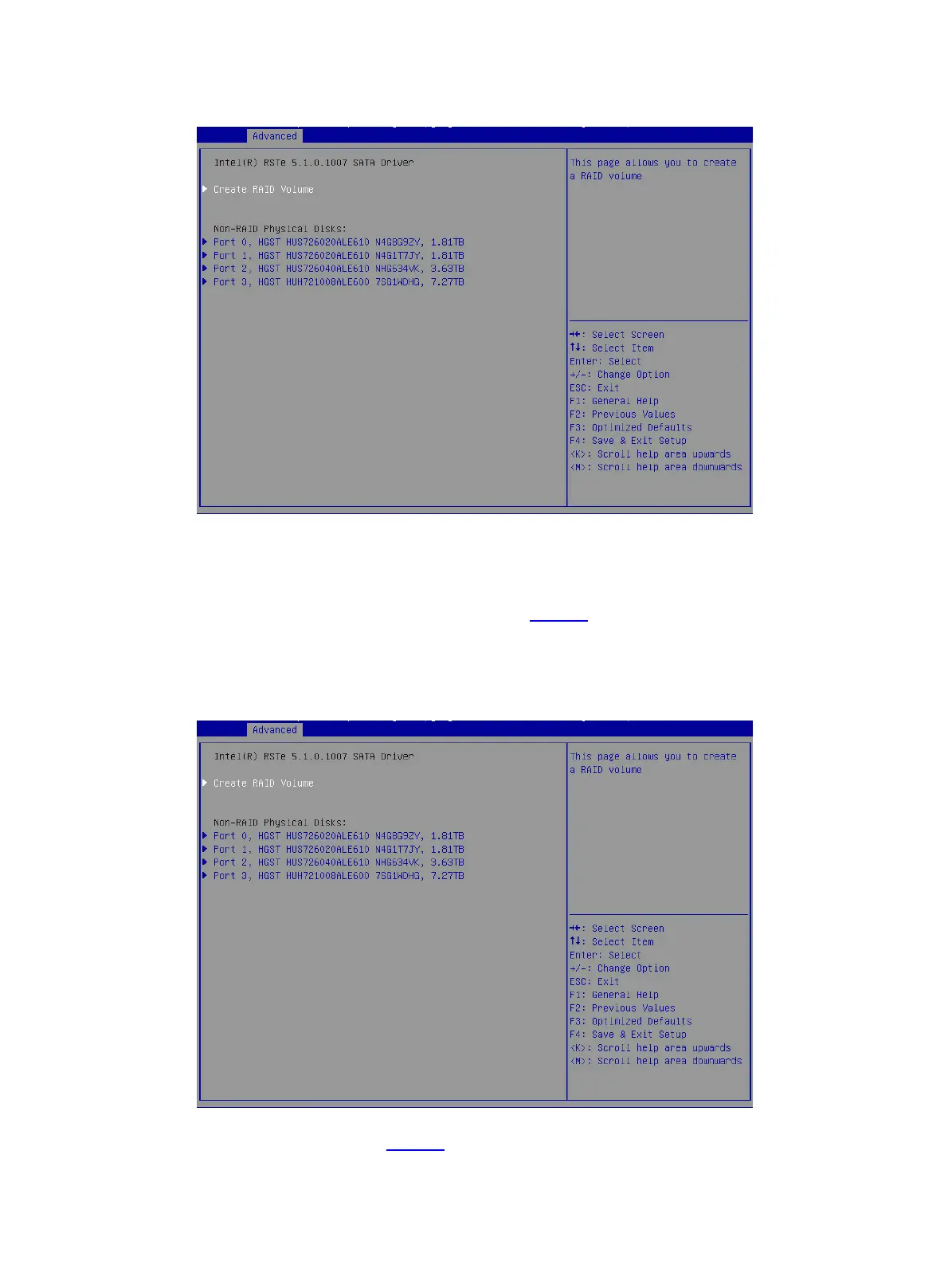

Figure 6 RSTe configuration screen
Configuring RAID arrays
1. On the RSTe configuration screen as shown in Figure 7, select Create RAID Volume, and
press Enter.
The Create RAID Volume option is available only when the interface corresponding to the
SATA or sSATA controller connects to two or more drives.
Figure 7 Selecting Create RAID Volume
2. On the screen as shown in Figure 8, set the Name, RAID Level, Select Disks, Strip Size, and
Capacity parameters, select Create Volume, and press Enter to create the RAID volume.
