H3C UniServer R4950 G3 User Manual

82

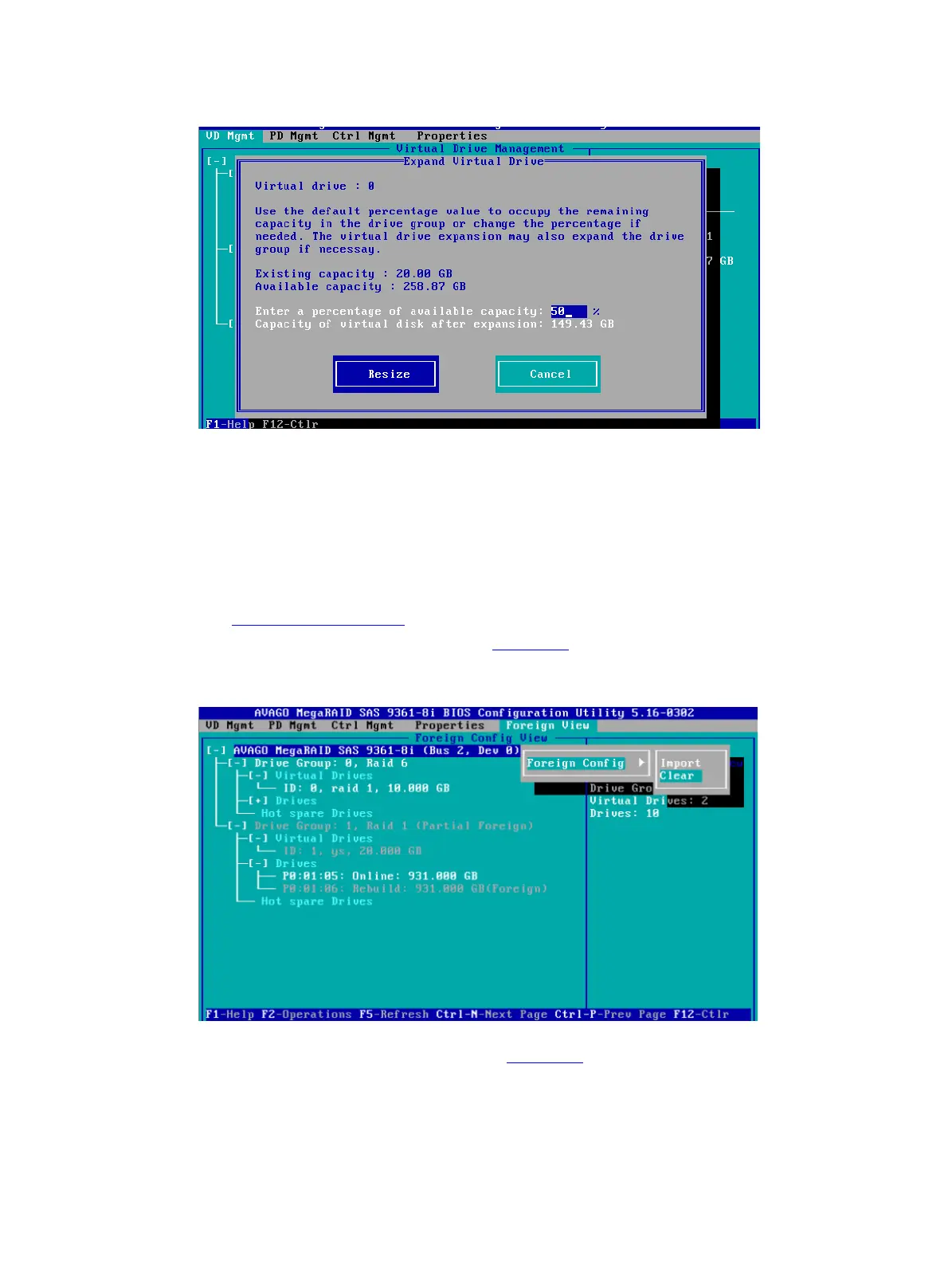

Figure 149 Setting the percentage of available capacity
Clearing RAID array information on the drive
This task allows you to clear remaining RAID array information on the drive for reconfiguring RAID
array on the drive.
To clear RAID array information on the drive:
1. Switch the drive state from Unconfigured Bad to Unconfigured Good. For more information,
see "Switching the drive state."
2. On the Foreign View screen as shown in Figure 150, select the target storage controller and
press F2. Select Foreign Config > Clear and press Enter.
Figure 150 Selecting Foreign Config > Clear
3. On the dialog box that appears as shown in Figure 151, select OK and press Enter.
