14
1. Power on or reboot the server.
2. When the screen is as shown in Figure 20 during server POST, press Ctrl+I.

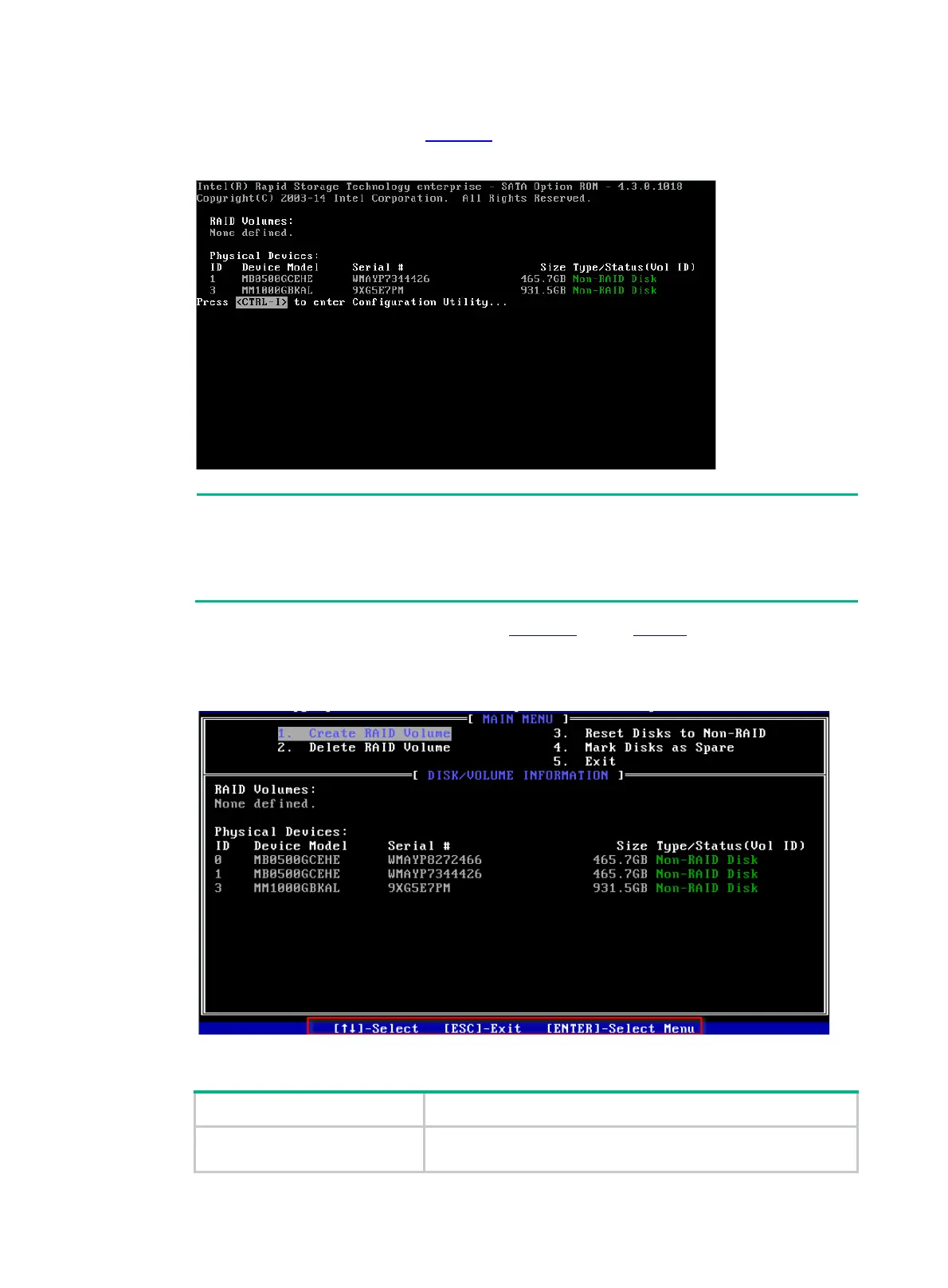

Figure 20 BIOS boot screen
If both sSATA and SATA controllers are configured to operate in RAID mode, the prompt
Press <CTRL
-I> to enter Configuration Utility appears twice during server POST, which
s to the sSATA controller and SATA controller. Select a controller according to the
drives to be configured for a RAID array.
The RSTe configuration screen as shown in Figure 21 opens. Table 3 describes the
configuration screen. For how to navigate screens and modify settings, see the operation
instructions at the bottom of the screen.
Figure 21 RSTe configuration screen
Table 3 RSTe configuration screen description
Section Description
MAIN MENU
In the
MAIN MENU
section on the upper part of the page, you can
perform the following tasks:
