24

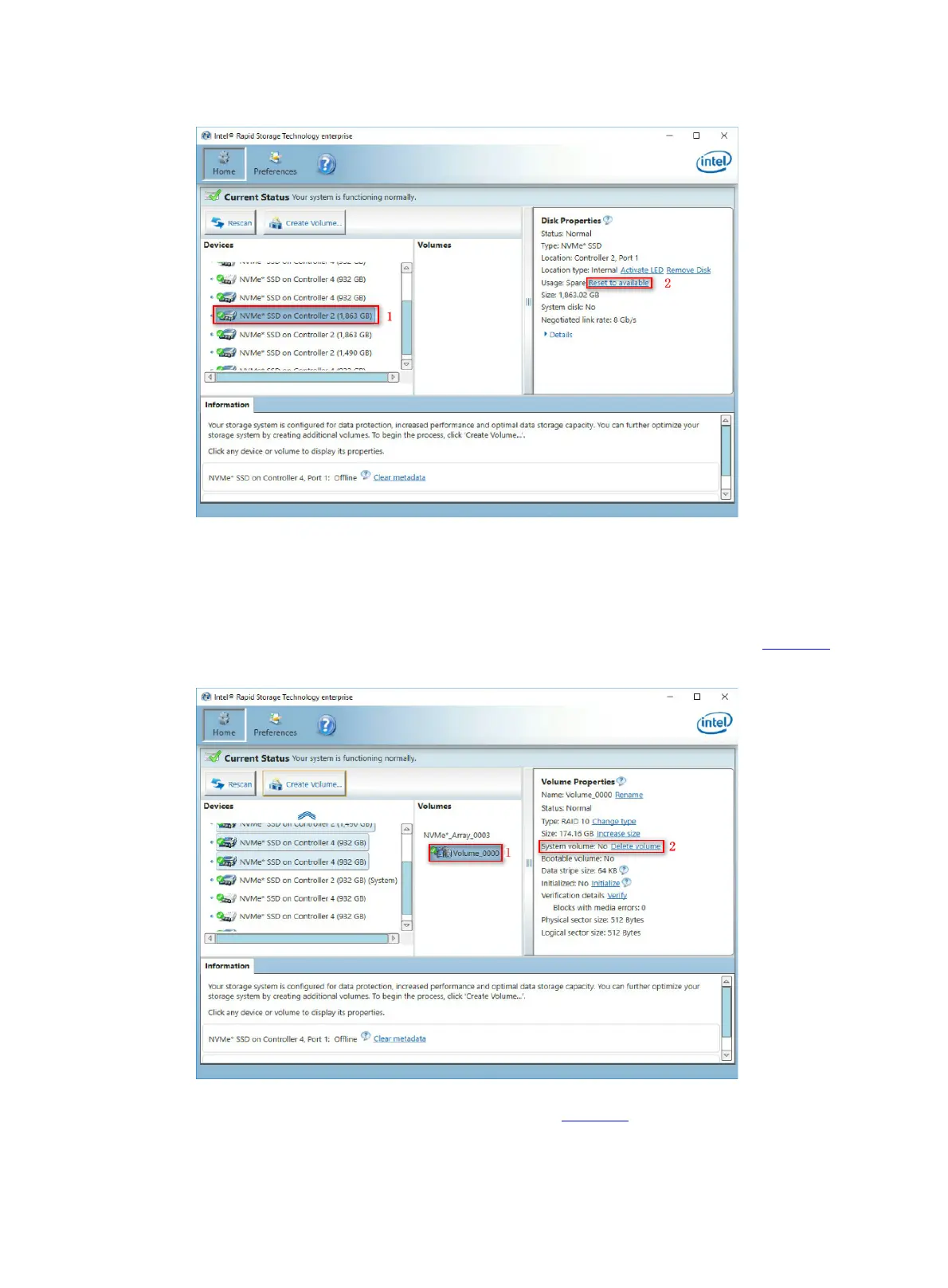

Figure 39 Verifying the configuration
Deleting RAID arrays
1. Open Intel VROC 6.0 PV GUI.
2. Select the RAID array to be deleted, and then click Delete volume, as shown in Figure 40.
Figure 40 Deleting a RAID array
3. In the dialog box that opens, click Yes, as shown in Figure 41.
