H3C WA Series

4-5

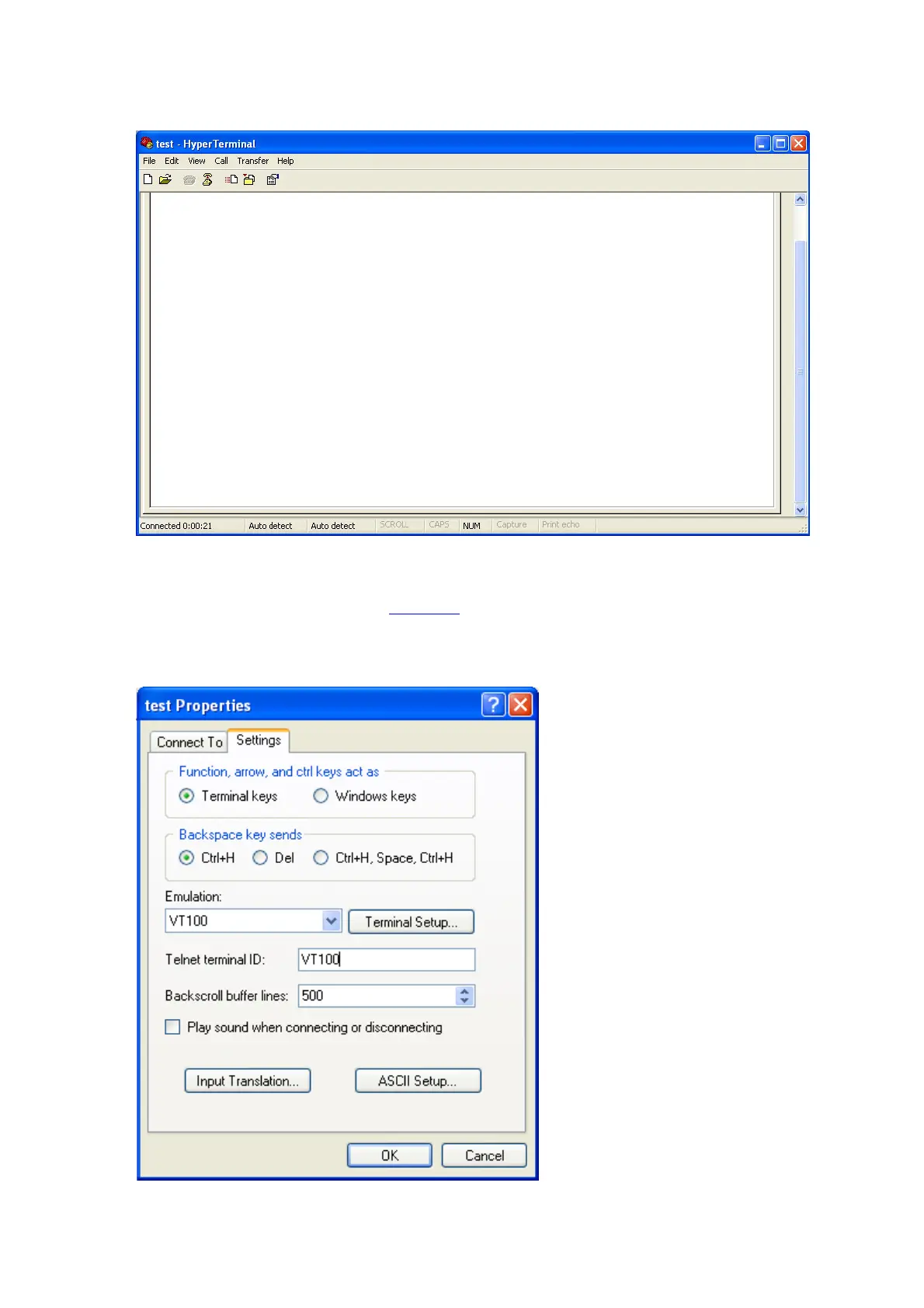

Figure 4-6 The HyperTerminal window
Select File > Properties on the HyperTerminal window, and the test Properties window appears.
Select the Settings tab as shown in
Figure 4-7, select VT100 from the Emulation drop-down list, and
then click OK.
Figure 4-7 Select the emulation terminal on the test Properties window
