3-8
Connecting the Power Supply
Local Power Supply
Connect the AP to the power source through the power adapter, as
shown in
Figure 3-6.

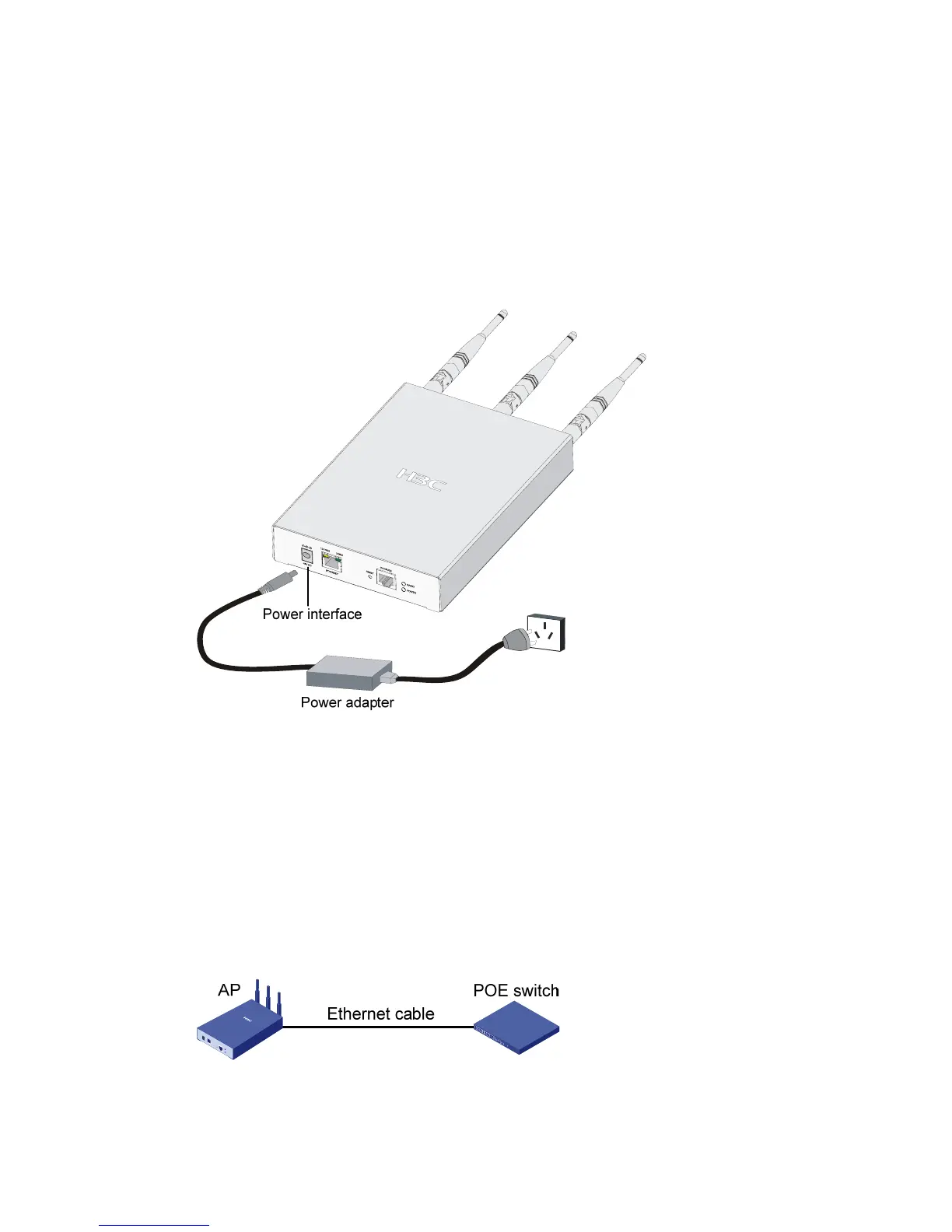

Figure 3-6 Local power supply connection
Power over Ethernet
If the uplink device of the AP is a PoE-capable switch or the like, use
an Ethernet cable to connect the Ethernet interface of the AP to the
PoE-capable device.
Figure 3-7 PoE connection
