2.3 Product components
W A R N I N G
Personal injury hazard. Instruments or components are heavy. Use assistance to install
or move.
The instrument weighs a maximum of 86 kg (190 lb). Do not try to unpack or move the instrument
without sufficient equipment and people to do it safely. Use correct lifting procedures to prevent
injury. Make sure that all used equipment is rated for the load, for example, a hand truck must be
rated for a minimum of 90 kg (198 lb). Do not move the sampler when filled sample bottles are in the
refrigerated cabinet.
Make sure that all components have been received. Refer to Figure 3. If any items are missing or
damaged, contact the manufacturer or a sales representative immediately.

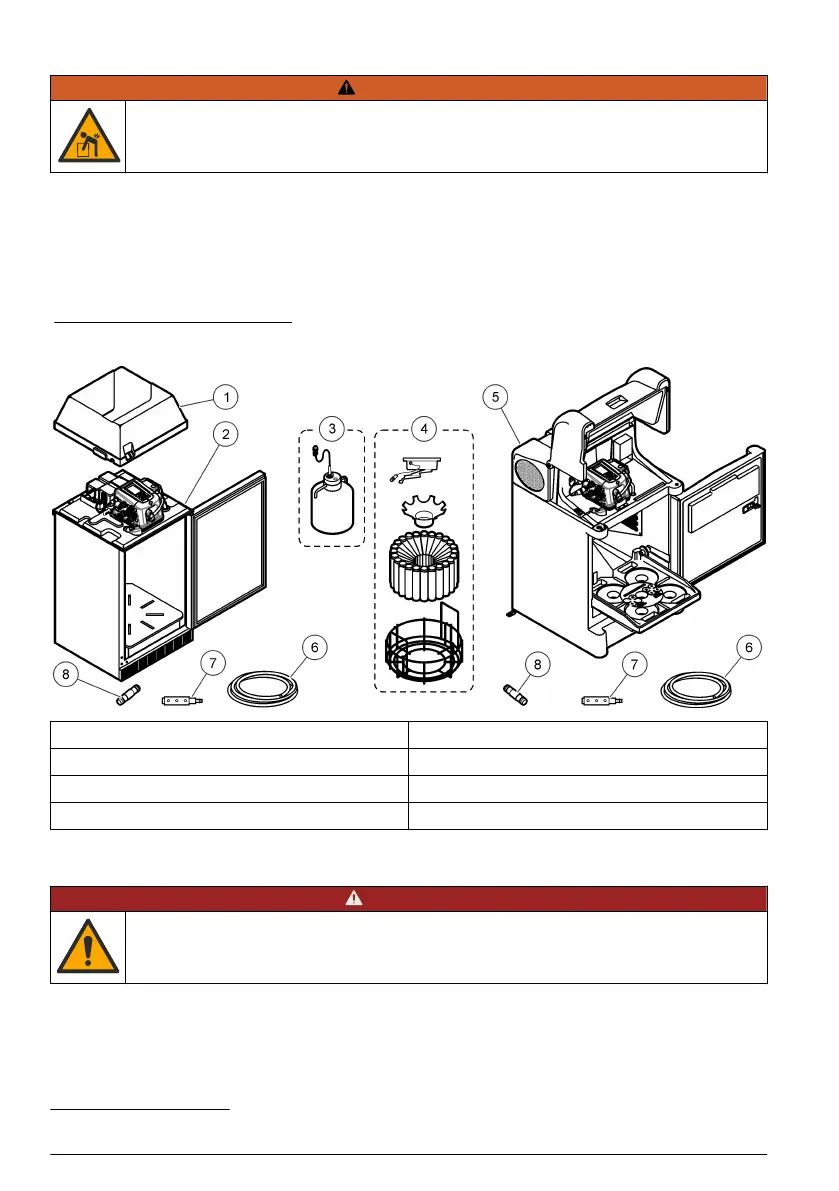

Figure 3 Sampler components
1 Optional cover 5 All Weather Refrigerated Sampler (AWRS)
2 Refrigerated sampler 6 Intake tubing, vinyl or teflon-lined
3 Components for single-bottle option 7 Strainer
4 Components for multiple-bottle option 8 Tubing coupler
3
Section 3 Installation
D A N G E R
Multiple hazards. Only qualified personnel must conduct the tasks described in this
section of the document.
3
Supplied with controllers with the non-contacting liquid detector only.
