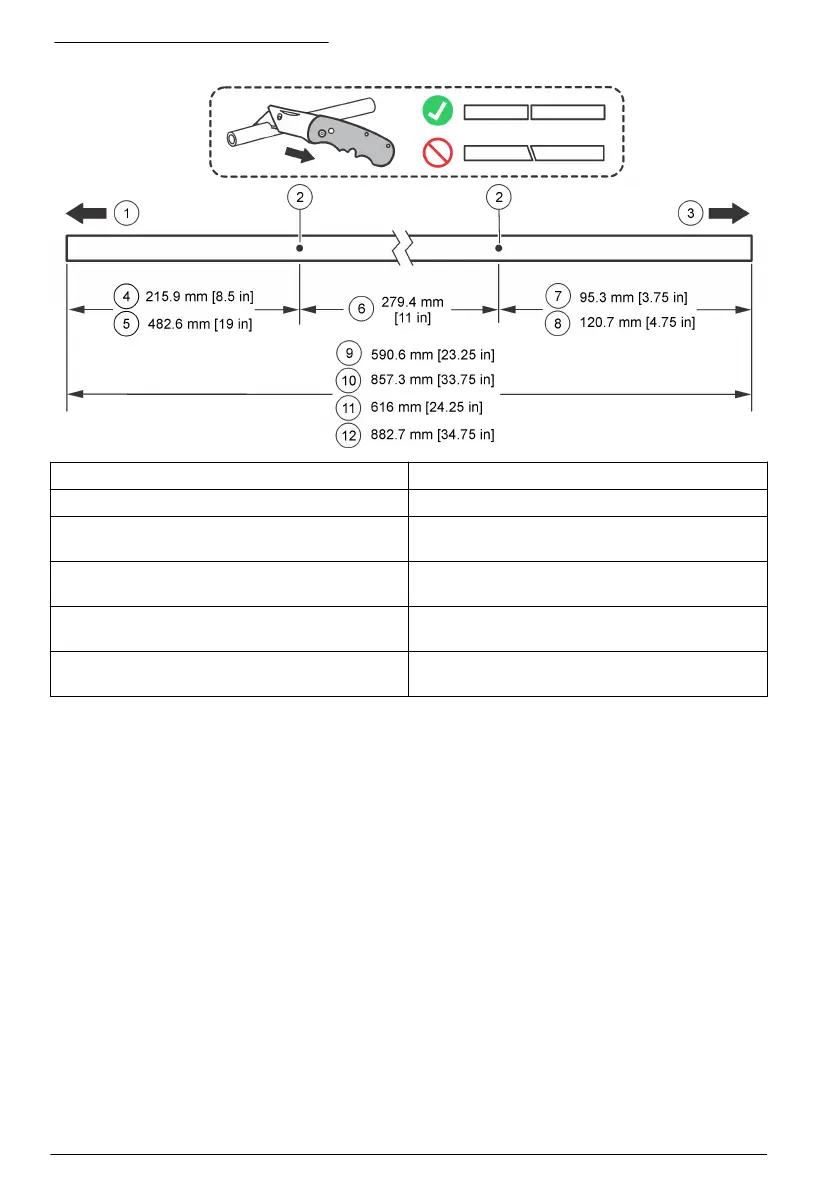

Figure 14 Pump tubing preparation
1 To intake tubing 7 Length for the refrigerated sampler
2 Alignment dots 8 Length for the AWRS
3 To fitting on sampler base 9 Length for refrigerated sampler and controller
with standard liquid detector
4 Length for controller with standard liquid
detector
10 Length for refrigerated sampler and
controller with non-contacting liquid detector
5 Length for controller with optional non-
contacting liquid detector
11 Length for AWRS and controller with
standard liquid detector
6 Length inside the pump 12 Length for AWRS and controller with non-
contacting liquid detector
22 English
