The instrument is compatible with petroleum and phospate ester-based
hydraulic fluids (includes MIL-H-5606 and Skydrol
®
). The instrument
comes with refillable CO
2
bottles for use in the field and a shop-air port
fitting for in-house operation. For different views of the instrument, refer
to Figure 1 and Figure 2.
Note: Due to U.S. shipping restrictions, the instrument is shipped with empty CO
2
bottles.

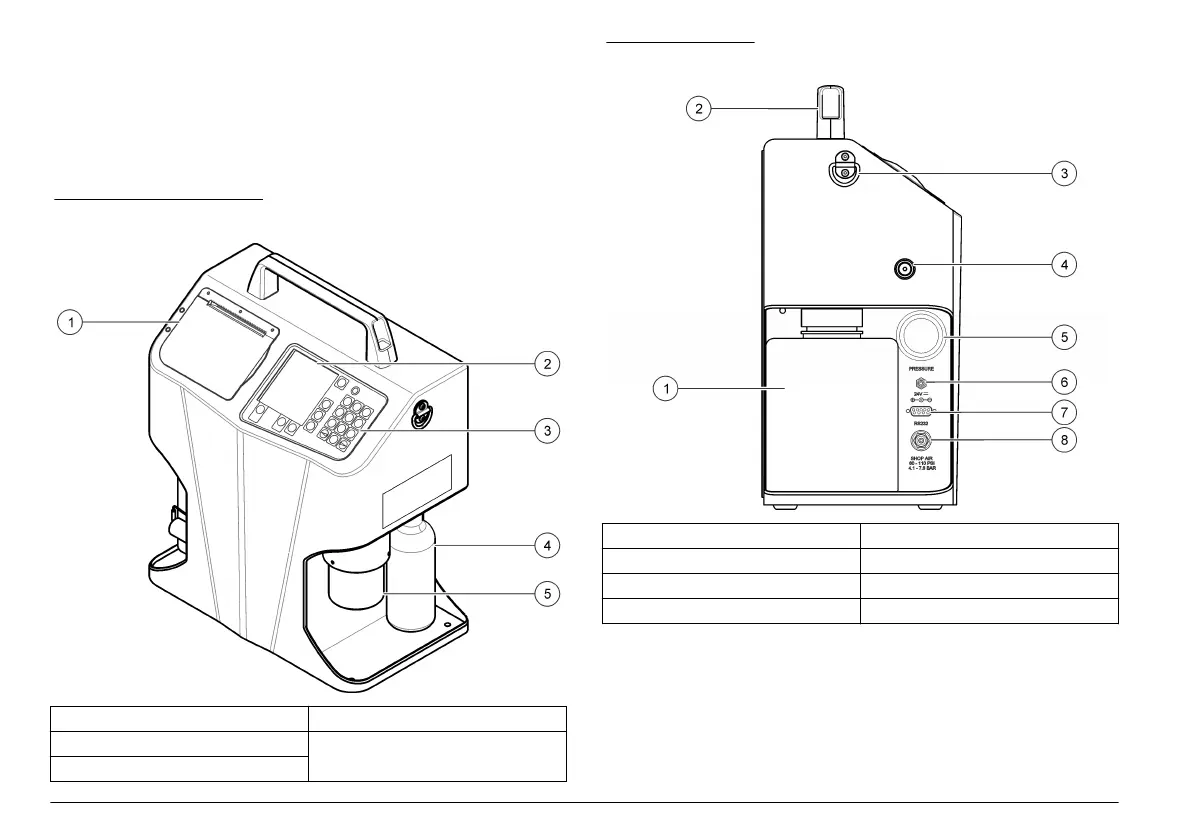

Figure 1 Product overview
1 Printer door 4 CO
2
bottle
2 Display 5 Sample bottle adapter
3 Keypad
Figure 2 Side view
1 Waste bottle 5 Pressure gauge
2 Handle 6 Power input port
3 Shoulder strap D-ring 7 RS232 port
4 Clean-out port 8 Shop air port
Product components
Make sure that all components have been received. Refer to Figure 3. If
any items are missing or damaged, contact the manufacturer or a sales
representative immediately.
