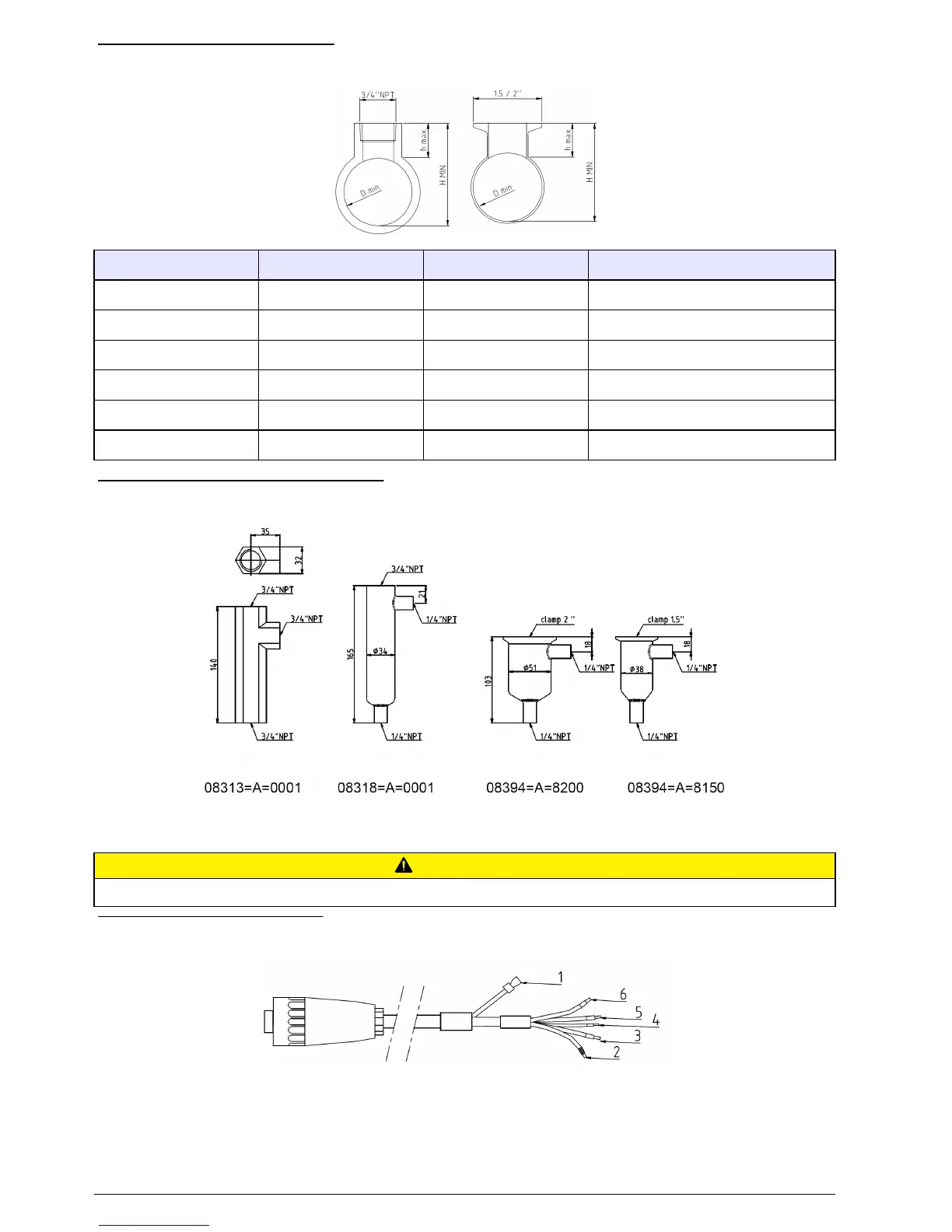

Figure 2 Electrode diameters
Model h max (mm) H min (mm) D min (standard piping)
8310 / 11 40 80 DN40 or 1½ inch
8312 50 75 DN20 or ¾ inch
8315 28 117 DN90 or 4 inch
8316 28 80 DN50 or 2 inch
8317 28 90 DN75 or 3 inch
8394 21.5 65.5 DN50 or 2 inch
Figure 3 Flow chamber dimensions
Cable connections
C A U T I O N
Connect the cable quickly to avoid any risk of humidifying the connector.
Figure 4 Cable connections
6 English
