SETUP & PROGRAMMING
Fire LED
(pulsing)
LED 1 LED 2 LED 3 LED 4 LED 5 LED 6 LED 7 LED 8 LED 9
Attribute
Fire
latching
Short
circuit as
fi re
I.S
operation
Silent
mode
Priority
alarm
Detector
removal
monitoring
Zener
diode
detector
bases
Gate valve
& fi re
pump (see
over page)
Delayed
(info only)
Amber
fault LED
(default
setting)
ON OFF OFF OFF ON ON OFF OFF OFF
RESOUND SILENCE RESET
ENTER
1234
Disable
Mode
Test
Mode
Mute
Buzzer
Test
Lamps

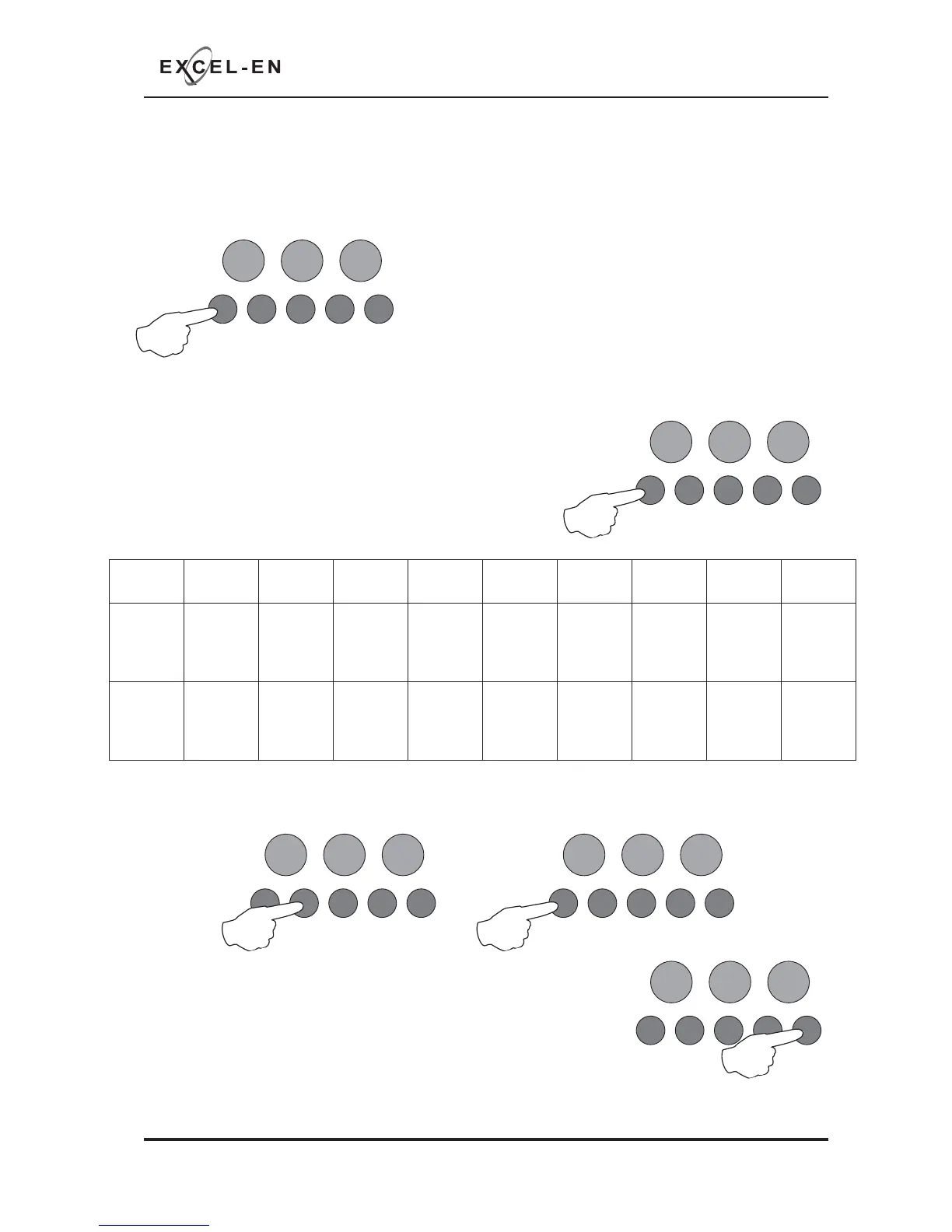

Enter the code 3 1 2 1 and press the ENTER button.
The zone 1 fi re LED will light. This indicates setting zone function attributes for zone 1. The amber, fault
LEDs will show the current settings for that zone.
Use button 1 to move to the zone that requires editing.
With the required zone for editing LED lit, press the ENTER button to enter ‘editing mode’.
The fi re zone 1 LED will now pulse to indicate the editing of
attribute 1 (fi re latching) for the selected zone.
Use button 1 to scroll to the attribute that requires editing,
inidicated by a pulsing fi re LED 1 - 9 as per table below.
The setting of the attribute is indicated by the amber, fault LED,
ON or OFF.
Use button 2 to switch the attribute ON or OFF, indicated by the amber, fault LED, then use button 1 to
move to the next attribute if required.
Press the ENTER button to return back to the zone selection, indicated
by a steady zone fi re LED
RESOUND SILENCE RESET
ENTER
1234
Disable
Mode
Test
Mode
Mute
Buzzer
Test
Lamps
RESOUND SILENCE RESET
ENTER
1234
Disable
Mode
Test
Mode
Mute
Buzzer
Test
Lamps
RESOUND SILENCE RESET
ENTER
1234
Disable
Mode
Test
Mode
Mute
Buzzer
Test
Lamps
RESOUND SILENCE RESET
ENTER
1234
Disable
Mode
Test
Mode
Mute
Buzzer
Test
Lamps
When fi nished all the zone function programming, enter the next programming code or disable the controls
and return DIL switch 2 to ‘OFF’.
To Next Page
