Dialock Door Terminals DTSH, DTSH FH - Status: 07.2008 - 732.29.134
61
English
Installation Instructions

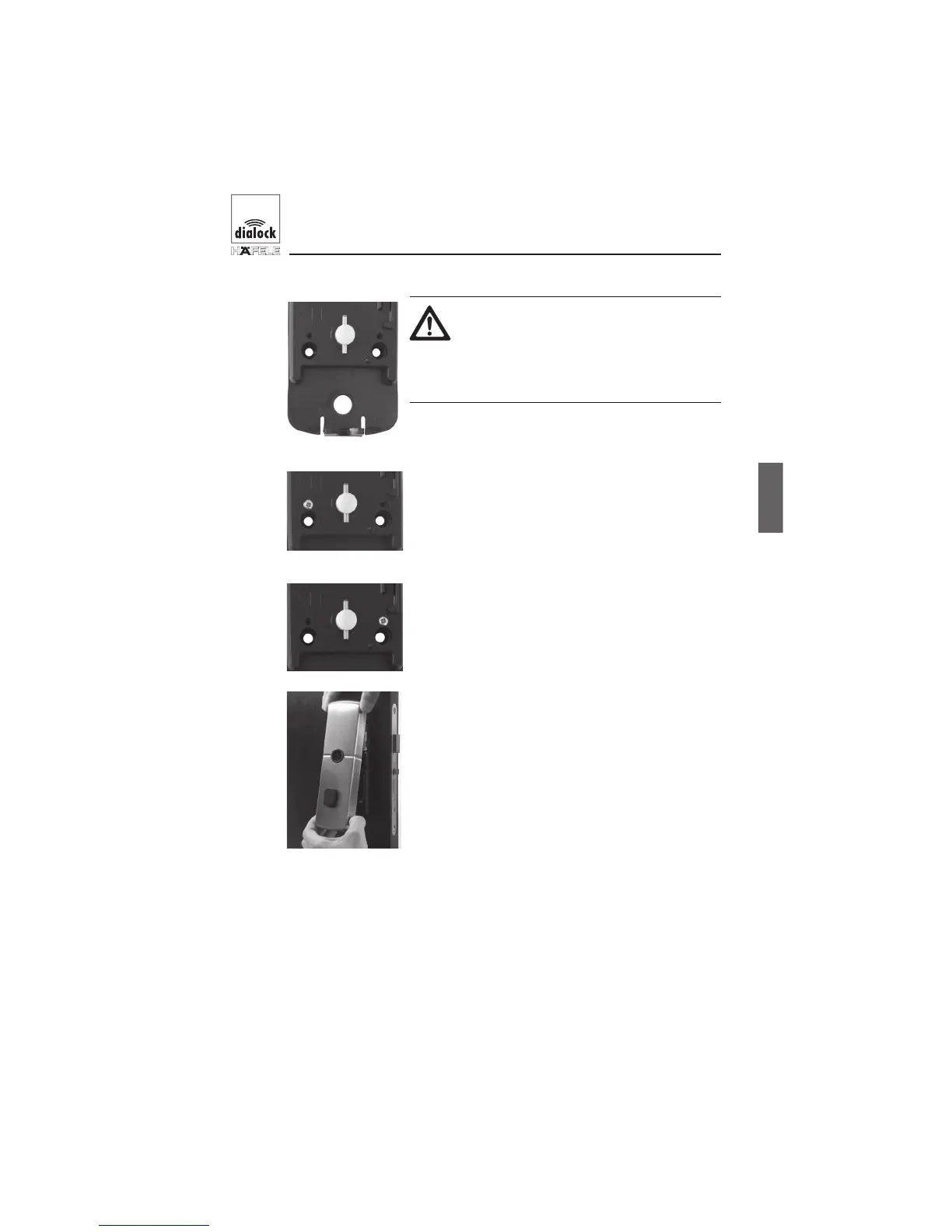

Fig. 44
Fig. 45
Fig. 46
Fig. 47
Pay attention to position of
"Do not disturb" rotary knob!
The rotary knob must be vertical during
installation and the grooved side of the
square spindle at the internal module
must point in the direction of the forend.
The direction of rotation of the "DND" lever can 8.
be set to right or left if required.
Fig. 44: Direction of rotation right/left
without screw
Fig. 45: Direction of rotation left
with screw position A
Fig. 46: Pivot direction right
with screw position B
Remove hood of internal module. With long 9.
door handle pins, slide the hood onto the
square spindle first.
A
B
