Dialock Door Terminals DTSH, DTSH FH - Status: 07.2008 - 732.29.134
53
English
Installation Instructions

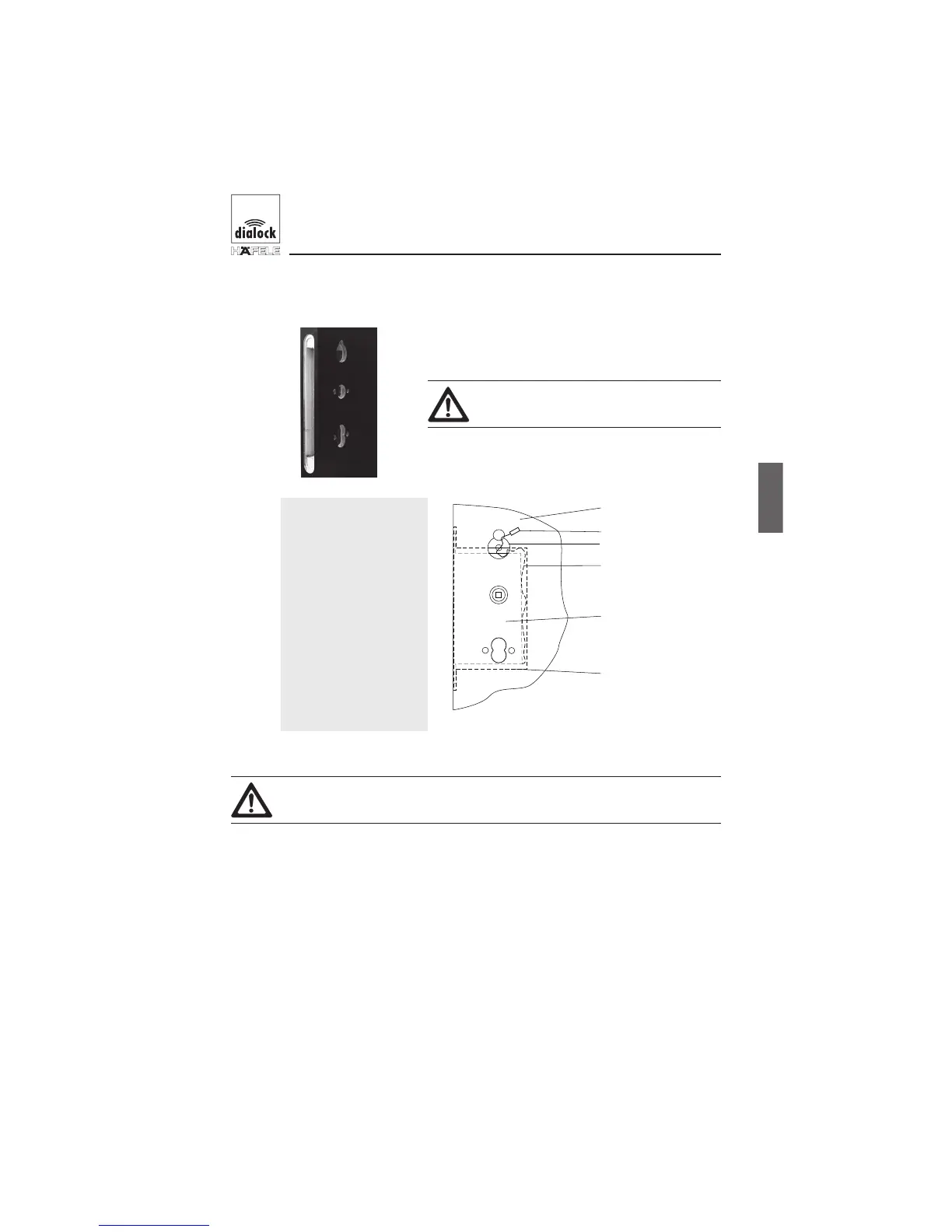

C. Remove mortise lock, clean and re-insert
Fig. 24
Remove mortise lock.
Outside of door is already drilled and cut.
Before continuing, remove debris
and clean lock pocket.
With emergency
opening log, lead con-
necting cable into the
inside of the lock pock-
et and out via the hole
that has been cut.
Fig. 25
Pay attention to cable routing when inserting the connecting cable!
Do not crush cable! (Fig. 25)
Insert mortise lock as described in "A. Insert mortise lock" on page 47.
Connection cable
Depth cutting
Door leaf
Connector
Mortise lock
Lock pocket
