Häfele DL6500 - Change the Faceplate; Adjust the Backset

Preparing for installation
Adjust the backset
This latch lock can be adjust the backset from 60 mm to 70 mm by following the below picture.
2-3/8”
(60mm)
2-3/8”
(60mm)
2-3/4”
(70mm)
2-3/4”
(70mm)

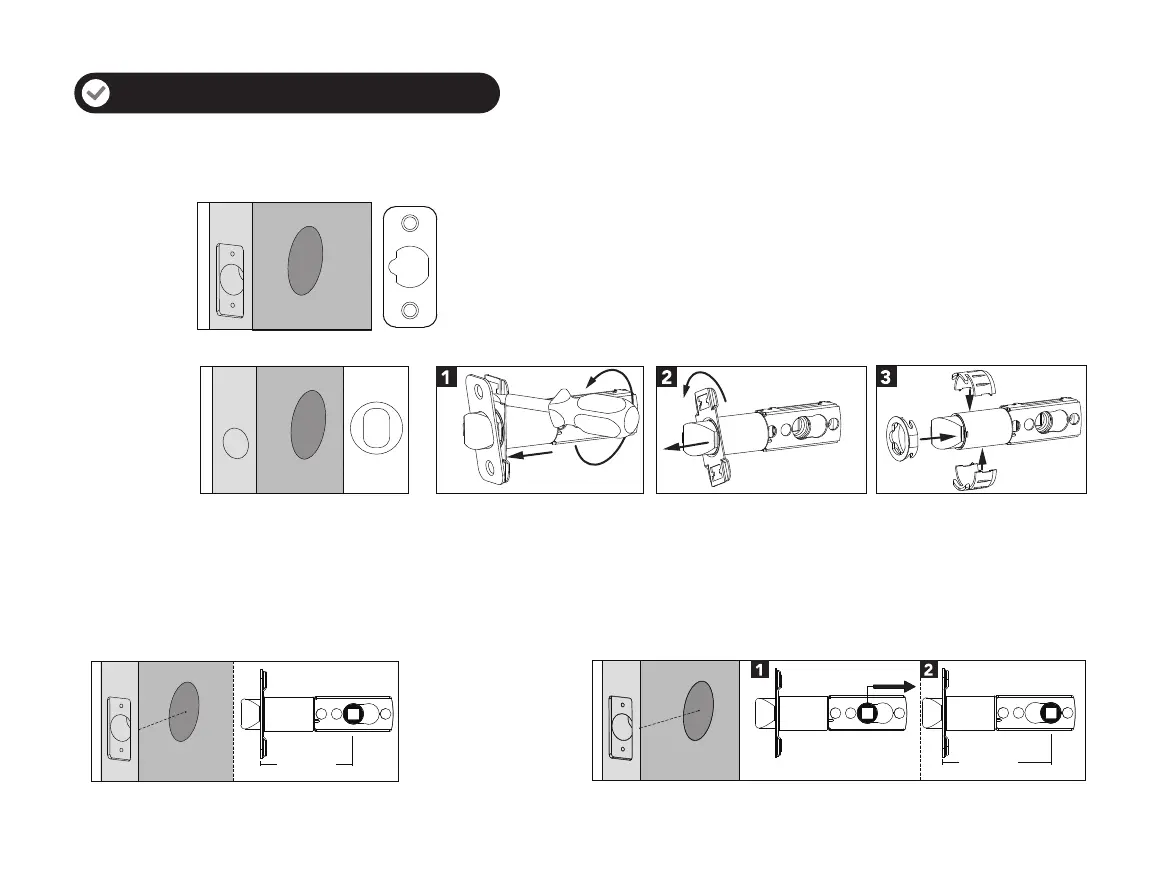

Change the faceplate (If necessary)
Check the type of door frame sockets to be installed.
Type 1
Type 2
Follow the 3 steps to complete the faceplate replacement.
No change
necessary
