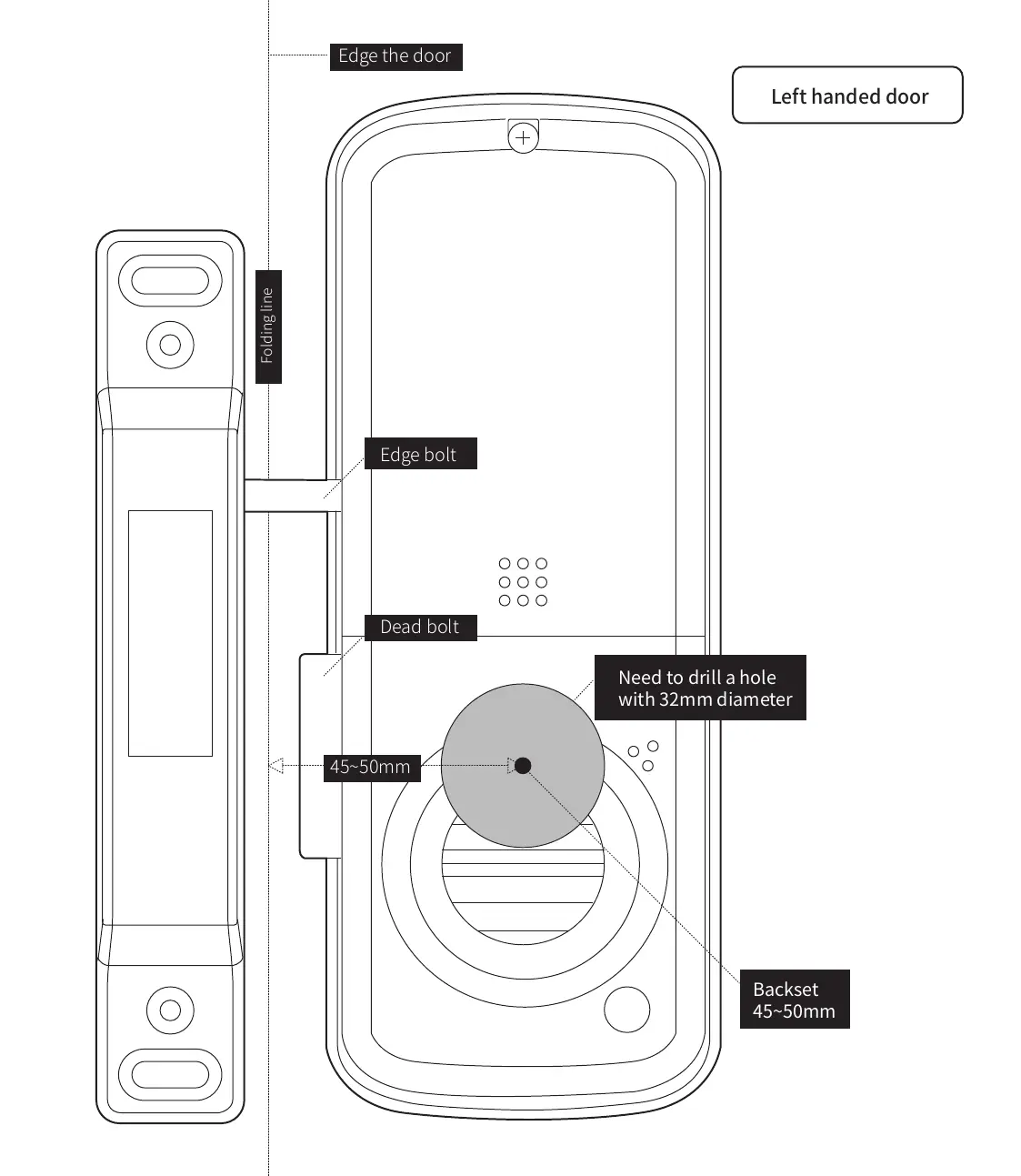

45~50mm
Left handed door
Edge the door
Edge bolt
Dead bolt
Folding line
Need to drill a hole
with 32mm diameter
Backset
45~50mm
